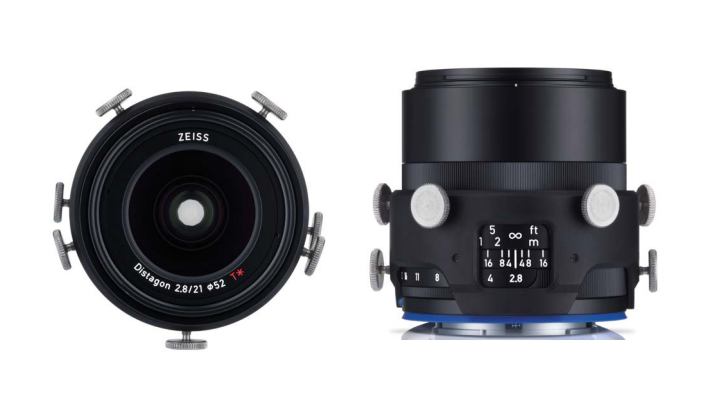

ZEISS Interlock Compact 2.8/21 Lens

Highlights

The ZEISS Interlock Compact 2.8/21 is a compact 21 mm industrial lens designed for large-format area-scan and line-scan imaging. Its Distagon optical design provides an aperture range of f/2.8 to f/22 and a 43 mm image circle suitable for full-frame 36 × 24 mm sensors and large line-scan sensors.

An M42x1 screw mount with an 18 mm flange focal distance positions the lens close to the camera sensor, supporting compact and mechanically stable imaging systems. Precise manual focusing, dedicated fixing screws for focus and aperture, ZEISS T* anti-reflective coating, and robust full-metal construction support demanding industrial applications.

Features

• 21 mm focal length for wide-angle industrial and machine-vision imaging
• f/2.8 to f/22 aperture range for exposure and depth-of-field control
• Large 43 mm image circle for full-frame and large line-scan sensors
• Full-frame area-scan support for sensors up to 36 × 24 mm and up to 42 megapixels
• Large-format line-scan compatibility for 4K to 8K systems
• Distagon optical design with 11 elements arranged in 9 groups
• Wide 91-degree diagonal field on the 36 mm full-frame format
• M42x1 screw mount for a stable lens-to-camera connection
• Short 18 mm flange focal distance for compact industrial camera assemblies
• Precise manual focus with engraved distance and depth-of-field scales
• Locking focus and aperture screws to preserve adjustments under vibration and shock
• ZEISS T* anti-reflective coating for high contrast in challenging lighting conditions
• Robust full-metal construction for demanding industrial environments
• 448 g lens weight supporting compact systems and resistance to mechanical stress

Applications

• Machine vision
• Industrial production inspection
• Quality assurance
• Optical metrology
• Full-frame area-scan imaging
• 4K to 8K line-scan imaging
• Medical imaging systems
• Traffic enforcement
• Sports imaging
• Vibration-prone industrial systems
