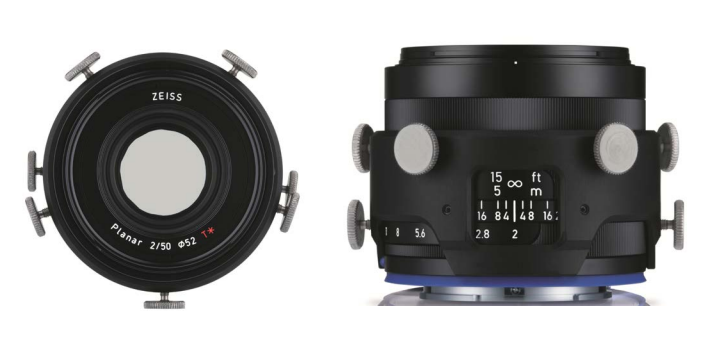

ZEISS Interlock Compact 2/50 Lens

Highlights

The ZEISS Interlock Compact 2/50 is a compact 50 mm industrial lens designed for large-format area-scan and line-scan imaging. Its f/2.0 maximum aperture, Planar optical design, and 43 mm image circle support 36 × 24 mm full-frame area-scan sensors and 43 mm line-scan systems.

An M42x1 screw mount with an 18 mm flange focal distance supports compact and mechanically stable camera assemblies. Precise manual focusing, dedicated fixing screws for focus and aperture, ZEISS T* anti-reflective coating, and robust full-metal construction support reliable use in demanding industrial environments.

Features

• 50 mm focal length for industrial imaging with a moderate field of view
• f/2.0 maximum aperture with adjustment through f/22
• 43 mm image circle for large-format imaging systems
• Full-frame area-scan coverage for sensors up to 36 × 24 mm and 42 megapixels
• Large-format line-scan support for 43 mm sensors from 4K to 8K
• Planar optical design with 6 elements arranged in 4 groups
• 46-degree diagonal angular field on the 36 mm full-frame format
• M42x1 screw mount for a stable connection between the lens and camera
• 18 mm flange focal distance for compact industrial camera assemblies
• 450 mm minimum sensor-to-object distance with a 370 mm minimum free working distance
• Locking focus and aperture screws to preserve adjustments under vibration and shock
• ZEISS T* anti-reflective coating for reduced reflections and high image contrast
• Robust full-metal construction in a compact 374 g design

Applications

• Machine vision
• Industrial production processes
• Quality assurance
• Optical metrology
• Full-frame area-scan imaging
• Large-format line-scan imaging
• Medical imaging systems
• Traffic enforcement
• Sports imaging systems
