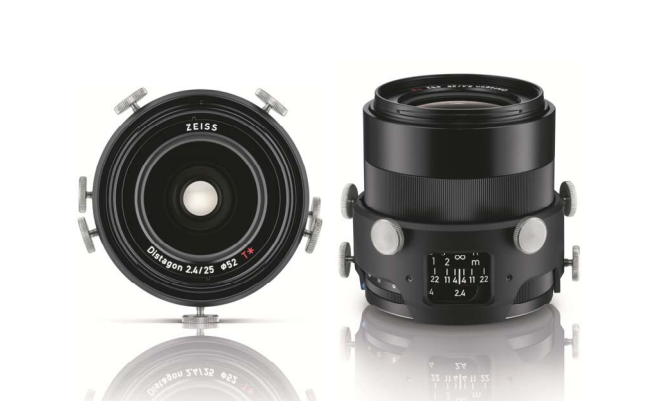

ZEISS Interlock Compact 2.4/25 Lens

Highlights

The ZEISS Interlock Compact 2.4/25 is a compact 25 mm industrial lens designed for large-format area-scan and line-scan imaging. Its f/2.4 maximum aperture, 43 mm image circle, and Distagon optical design support full-frame 36 × 24 mm area-scan sensors and large-format line-scan systems.

An M42x1 screw mount with an 18 mm flange focal distance supports compact and mechanically stable camera assemblies. Precise manual focusing, dedicated fixing screws for the focus and aperture settings, ZEISS T* anti-reflective coating, and a robust full-metal housing make the lens suitable for demanding industrial environments.

Features

• 25 mm focal length for wide-angle industrial imaging
• f/2.4 maximum aperture with adjustment through f/22
• 43 mm image circle for large-format imaging systems
• Full-frame area-scan coverage for sensors up to 36 × 24 mm
• Large-format line-scan support for 43 mm sensors from 4K to 8K
• Distagon optical design with 10 elements arranged in 8 groups
• 81-degree diagonal field of view on the 36 mm full-frame format
• M42x1 screw mount for a stable lens-to-camera connection
• 18 mm flange focal distance for compact industrial camera systems
• 250 mm minimum sensor-to-object distance with a 163 mm minimum free working distance
• Locking focus and aperture screws to preserve settings in vibration-prone environments
• ZEISS T* anti-reflective coating for reduced reflections and high image contrast
• Robust full-metal construction with a compact 474 g design

Applications

• Machine vision
• Industrial production inspection
• Quality assurance
• Optical metrology
• Full-frame area-scan imaging
• Large-format line-scan imaging
• Medical imaging systems
• Traffic enforcement
• Sports imaging
