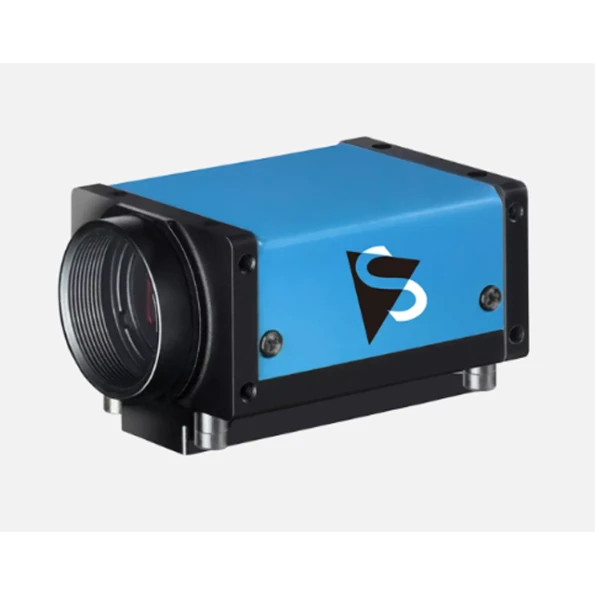

The Imaging Source Industrial DMK 38GX304

Highlights

The Imaging Source DMK 38GX304 monochrome industrial camera utilizes CMOS Pregius S Sony IMX304LLR sensors which deliver outstanding image quality. DMK 38GX304 cameras deliver distortion-free images and are well-suited for applications such as intelligent traffic systems (ITS), automated optical inspection (AOI) and microscopy.

Features

ix Industrial® Ethernet interface (RJ45 connector optional)
1.1 inch Sony CMOS Pregius sensor (IMX304)
4,096×3,000 (12.3 MP), up to 9 fps
Global shutter
Trigger and I/O inputs
Manufactured by The Imaging Source
Windows and Linux software included

Product Specifications

Resolution

4096 × 3000 px
Megapixel

12.3 MP
Frame Rate

9 fps
Dynamic Range

12 bit
Pixel Size

H: 3.45 µm, V: 3.45 µm
Sensor type

CMOS Pregius S
Sensor Specification

Sony IMX304LLR
Video Output Format

8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
IR Cut Filter

No
Shutter

Global
Format

1.1 inch
Lens Mount

C (CS optional)
Interface

GigE
Supply Voltage

9 VDC to 27 VDC or POE: 48 VDC to 56 VDC
Current Consumption

approx 400 mA @ 12 VDC
Auto Iris Control

No
Trigger

Yes
I/Os

Yes
Dimensions

H: 29 mm, W: 44 mm, L: 60 mm
Mass

144 g
Shutter

2 µs to 4 s
Temperature (operating)

-5 °C to 45 °C
Temperature (storage)

-20 °C to 60 °C
Humidity (operating)

20 % to 80 % (non-condensing)
Humidity (storage)

20 % to 95 % (non-condensing)
