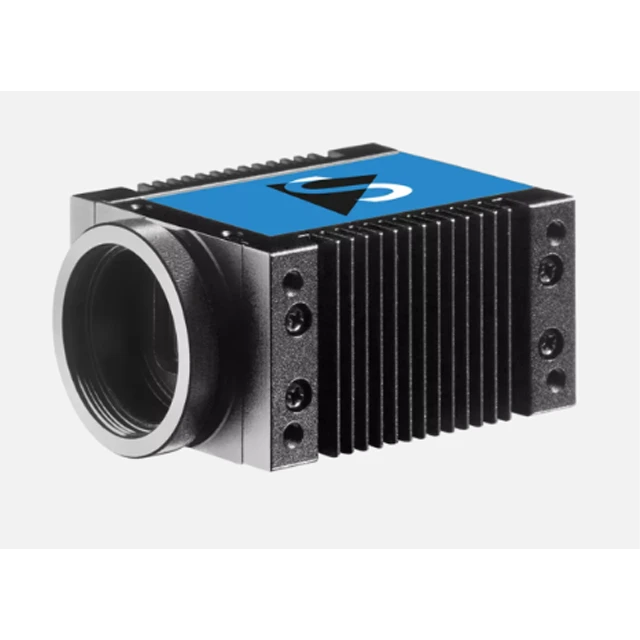

The Imaging Source Industrial 33e DFK 33GX249e

Features

Dynamic range

8/12 bit
Video formats @ frame rate (maximum)

1,920×1,200 (2.3 MP) Y800 @ 48 fps | 1,920×1,200 (2.3 MP) Y16 @ 33 fps | 1,920×1,200 (2.3 MP) Y411 @ 33 fps | 1,920×1,200 (2.3 MP) YUY2 @ 25 fps | 1,920×1,200 (2.3 MP) RGB24 @ 16 fps
IR cut filter

Yes
Sensor type

CMOS Pregius
Sensor specification

Sony IMX249LQ
Shutter

Global
Format

1/1.2 inch
Resolution

1,920×1,200
Frame Rate

48 fps
Megapixel

2.3 MP
Lens mount

C (CS Optional)
Interface

GigE
Supply voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC
Current consumption

approx 400 mA @ 12 VDC
Auto iris control

No
Trigger

Yes
I/Os

Yes
Dimensions

H: 29 mm, W:44 mm, L: 57 mm
Mass

120 g
Shutter

30 µs to 30 s
Gain

0 dB to 48 dB
White balance

-2 dB to 6 dB
Temperature (operating)

-5 °C to 45 °C
Temperature (storage)

-20 °C to 60 °C
Humidity (operating)

20 % to 80 % (non-condensing)
Humidity (storage)

20 % to 95 % (non-condensing)
