Smart Vision Lights RM75-4Z-KIT

Highlights

The compact and powerful  Smart Vision Lights RM75-4Z-KIT is a low-angle ring light kit that works best for darkfield ring applications. The light included in this kit can also be used for radial illumination. The RM75-4Z KIT includes an RM75-4Z mini ring light and a 4ZMD-250 external driver. Contact us for more details!

Product Description

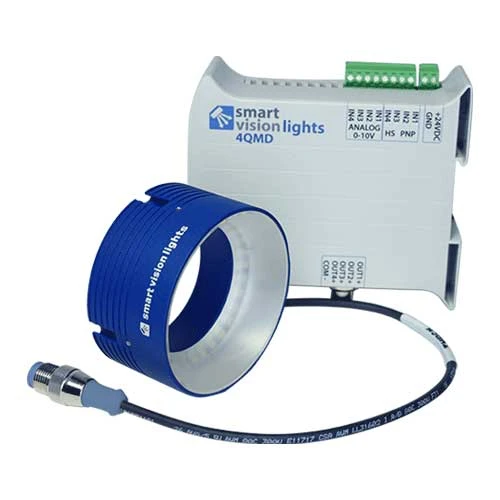

The compact and powerful RM75-4Z Mini Ring Light is a low-angle ring light that works best for darkfield ring applications. The light can also be used for radial illumination. The RM75-4Z has four zones, making it a quadrant light that can have each individual zone controlled independently of one another. The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive, allowing a range to be set from 10%–100% for continuous operation or OverDrive strobe mode. The maximum continuous current for the 4ZMD-100 is 100 mA when connected to the RM75-4Z.  When connected to a LED Light Manager (LLM), each individual channel can be set to continue on, off, or any intensity level in between, and even OverDrive strobe mode.

Smart Vision Lights RM75-4Z-KIT Features

• Independently control four individual zones built into a single light
• Sold with the 4ZMD, which allows for continuous operation or OverDrive strobe mode for each channel
• Built-in individual intensity control channels for either continuous operation or OverDrive strobe mode
• PNP high-speed strobe input
• Built-in over current-protection
• 5-pin M12 quick-connect (reverse -key)
