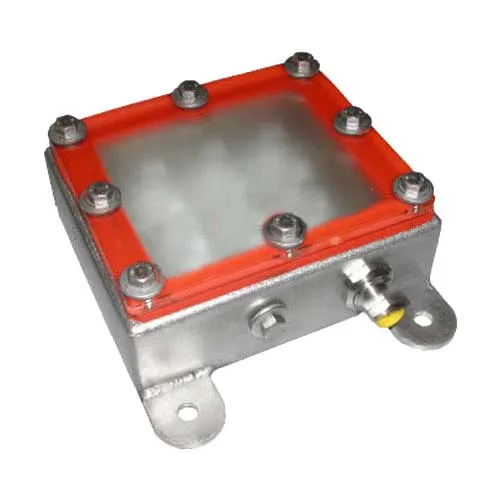

Smart Vision Lights ODSW75

Highlights

The Smart Vision Lights ODSW75 Brick Light spotlight features a 316 stainless-steel IP68-rated enclosure specially designed for the food industry and washdown environments. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or by adjusting the built-in manual potentiometer.

Smart Vision Lights ODSW75 Features

OverDrive — Up to five times brighter than a standard Brick Light
5-pin M12 quick connect
Stainless-steel 316 housing
Built-in smart driver
PNP and NPN trigger signal input
Backlight lens (diffuser) is factory installed
Intensity adjustable from 10%–100% using a built-in potentiometer

Smart Vision Lights Wavelength Chart 8

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current

Max. 2.5 A draw during strobe | Max Average 250 mA
Wattage

Max. 96 W during strobe | Max. Avg. 9.6 W
Strobe Input

PNP : +4VDC or greater to activate | NPN : GND (< 1VDC) to activate
PNP Line

4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line

15 mA @ Ground (0 VDC)
Duty Cycle

Max. strobe duration 10%
Strobe/Pulse Time

Max 5000 strobes per second (SPS) | Max. Single Pulse = 125 ms Protected safe strobe
Potentiometer

270º turn pot — intensity control of 10%–100%. Turn clockwise to increases intensity.
Analog Intensity

The output is adjustable from 10%–100% of brightness by a 1–10 V DC signal.
Connection

5-pin M12 connector
Ambient Temperature

-18º–40º C (0º–122º F)
IP Rating

IP68
Weight

~760 g
Compliances

CE, RoHS, IEC-62471
