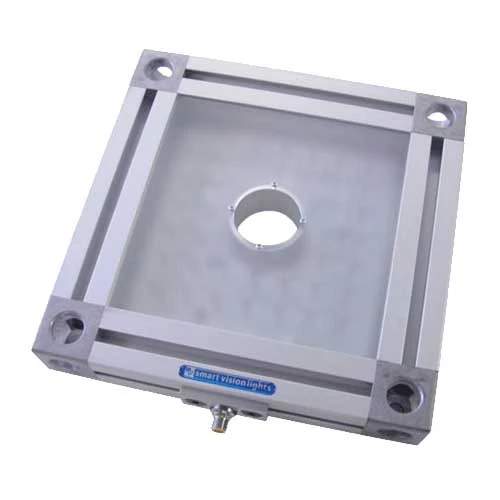

Smart Vision Lights ODRL200

Highlights

The Smart Vision Lights ODRL200 large ring light is designed to produce a homogeneous, uniform light pattern for larger applications and longer working distances. This light operates in OverDrive strobe mode. The ODRL200 runs on an industry-standard 24VDC. The 1-10VDC analog control line gives the user total control over intensity. Proper heat dissipation is achieved using side extrusion. The 45 mm extrusion makes mounting the light easily when using drop-in T-nuts. The all-metal construction of the Ring Light Series of lights provides a small particle resistant and all-around durable light. Its simple plug and play 5-pin M12 connector allows for ease of use while allowing for full control.

Smart Vision Lights ODRL200 Features

• Built-in constant current driver, no external driver is needed.
• PNP and NPN trigger strobe input
• 5-pin M12 quick connect
• Conversion adapters for different cameras
• OverDrive — Up to five times brighter than a standard Large Area Ring Light.
