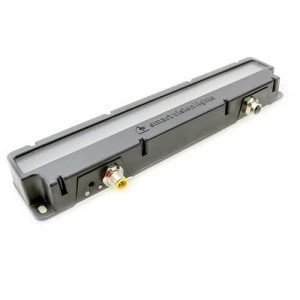

Smart Vision Lights ODL300

Highlights

The Smart Vision Lights ODL300 Bar/Linear Light utilizes 12 high-intensity LEDs and features an integrated OverDrive strobe driver with a maximum strobe rate of 5000 strobes per second. NPN or PNP trigger signals can be used to control the pulse of the light. The intensity of the light can be controlled via a 1-10VDC analog signal line or manual potentiometer. Daisy-chain up to six ODL300 lights together. Smart Vision Lights recommends the ODL300 be used at a working distance between 300 mm and 4000 mm.

Smart Vision Lights ODL300 Features

• OverDrive— up to five times brighter than a standard linear Connect-a-Light
• Daisy- chain up to six ODL300 linear lights using a 5-pin M12 jumper cable
• Built-in Smart Driver
• PNP and NPN trigger input signal
• Up to 5000 strobes per second
• 5-pin M12 quick connect
