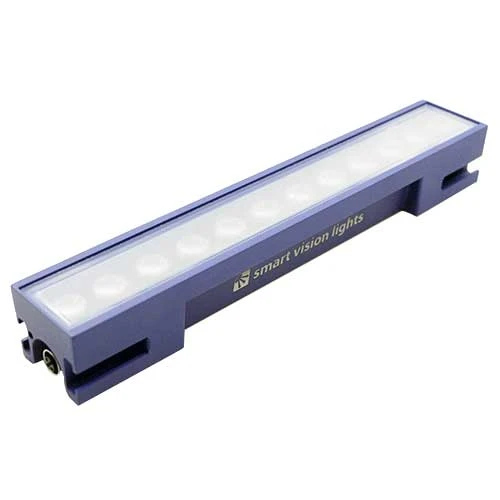

Smart Vision Lights LXE300

Highlights

Delivering up to 100,000 lux, the Smart Vision Lights LXE300 includes our advanced Multi-Drive™ driver, allowing users to operate the linear light in continuous operation or OverDrive™ strobe (high-pulse operation) mode. Users can also directly connect up to six LXE300 lights to create ultra-long linear lights at a fraction of the cost of traditional monolithic solutions without any loss in uniformity. The LXE300 can also be connected by daisy-chaining them together using a locking jumper cable. The LXE300 Linear Light is rated for IP65.

The Smart Vision Lights LXE300 is available in three different connector options Direct Connect – This is the default option that allows connecting lights together with no additional cables. Lights are directly connected together, with no space between the lights. Up to six LXE300 lights can be directly connected together. Daisy-Chain – The Daisy-Chain option allows for a locking 5 PM-12 Jumper Cable to be used when connecting LXE300 lights together. Lights are able to be spaced apart from each other. Up to six LXE300 lights can be Daisy-Chained together. Plug – If multiple units are not going to be used, a plug termination can be ordered.

Smart Vision Lights LXE300 Features

• Bright linear light, delivering up to 100,000 lux in OverDrive mode
• Directly connect up to six lights in a line without loss of uniformity for a fraction of the cost of monolithic designs
• Built-in Multi-Drive allows the light to work in continuous operation or OverDrive mode
• PNP and NPN strobe input
• 5-pin M12 quick connect
