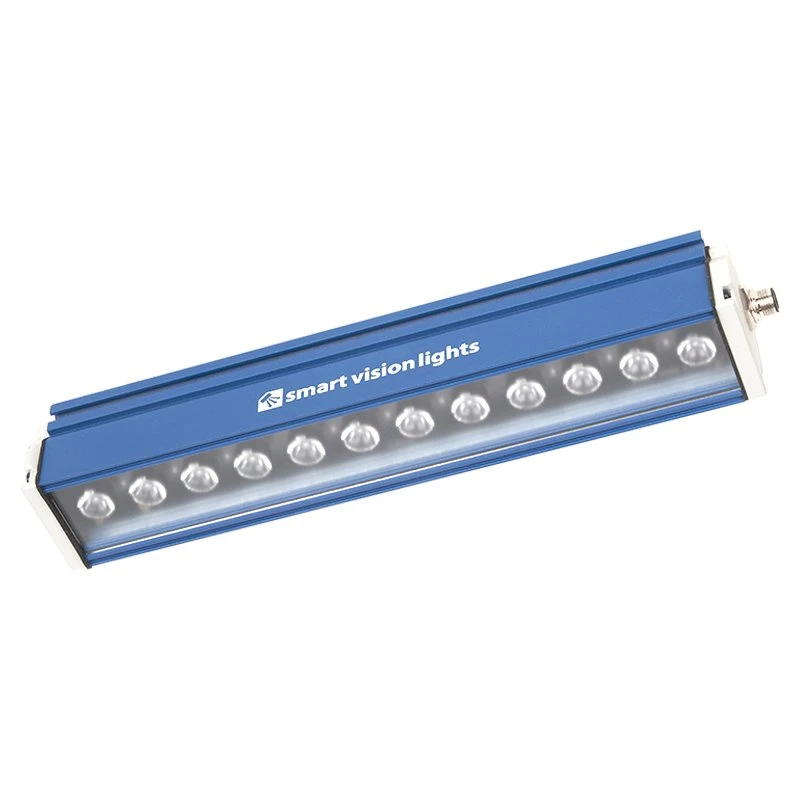

Smart Vision Lights LSR450

Highlights

The Smart Vision Lights LSR450 is a SmartVisionLink™-enabled linear light that can produce over 340,000 lux and is offered in lengths up to 1200 mm. When used with the BTM-1000 Bluetooth accessory and the SmartVisionLink™ app, the LSR Series can have its intensity remotely adjusted. The LSR Series is easily mounted with the built-in T-slot rail system.

Features

Multi-Drive™ provides the ability for either continuous or OverDrive™ strobe modes
SmartVisionLink™-enabled to allow for easy intensity adjustment in both continuous and OverDrive™ strobe modes.
IP65 sealed
Industry-leading 10-year warranty

Product Specifications

Electrical Input

24VDC +/- 5%
Input Current(Max)

Max. 530 mA per 150 mm segment | Max. 990 mA per 300 mm segment
Input Current(Peak)

Peak 2.5 A during strobe per 150 mm segment | Peak 5.1 A during strobe per 300 mm segment
Input Power(Max)

Max. 12.7 W per 150 mm segment | Max. 23.8 W per 300 mm segment
Input Power(Peak)

Peak 60 W during strobe per 150 mm segment | Peak 122 W during strobe per 300 mm segment
PNP Line

2 mA @ 4VDC | 7 mA @ 12VDC | 13.4 mA @ 24VDC
NPN Line

12 mA @ Common (0VDC)
Strobe/Pulse Time

Min. 10 µs | Max. ∞ | Min. 10 µs | Max. 50 ms
Analog Intensity

The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity. Intensity limit can be remotely adjusted via SmartVisionLink™
Connection

5-pin M12 connector
Operating Temperature

-10° to 40 ° C (14 ° to 104 ° F) | RH max 80% non-condensing humidity
IP Rating

IP65
Weight

2.6 lbs (~1.18 kg)
Compliances

CE, IEC-62471, RoHS
