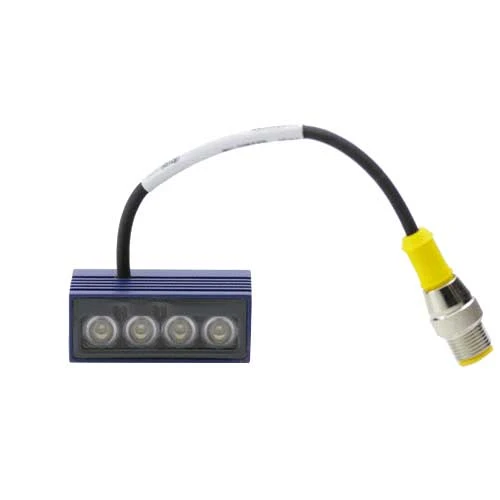

Smart Vision Lights LM45

Highlights

The Smart Vision Lights LM45 compact linear light features an integrated Multi-DriveTM constant current driver that operates continuously or in OverDriveTM strobe mode depending on the wiring method. The light can be mounted via a rear T-slot channel, also offers overcurrent protection and
PNP and NPN strobe input. With housing 51 mm long, the LM45 puts out unprecedented levels of light in one of the industry’s smallest footprints. Smart Vision Lights recommends the LM45 be used at a working distance between 50 mm to 1000 mm.

Smart Vision Lights LM45 Features

• Delivering up to 42,000 LUX in OverDrive mode with standard lenses
• Built-in Multi-Drive allows the light to work in continuous operation or OverDrive mode
• PNP and NPN strobe input
• Over-current protection
• 5-pin M12 quick connect
