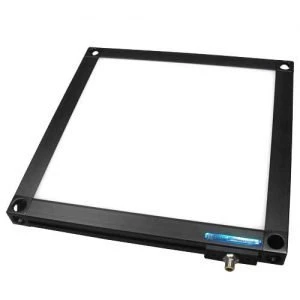

Smart Vision Lights LLPX-306×306

Highlights

The Smart Vision Lights LLPX-306×306 offers a homogeneous light pattern with the same familiar ease of mounting found on other Smart Vision Lights backlights. With the optically clear internal light dispersion grid and the matte-white-finished backing plate, more light is reflected up and out through the diffusion acrylic. The LLPX Series features Multi-Drive, which allows the light to operate in continuous operation or OverDrive strobe mode, depending on wiring. Multi-Drive offers the best of both worlds. Continuous operation and OverDrive mode (high-output strobe/pulse) are available in a single light. Other advantages of Multi-Drive include faster imaging and capture/freeze motion on high-speed lines. The Multi-Drive feature allows the user to run the light continuously or in OverDrive at the maximum allowed intensity by simply setting the product configuration. OverDrive operation has up to eight times the power of continuous operation

Smart Vision Lights LLPX-306×306 Features

• Built-in constant current driver, no external driver is needed
• PNP and NPN strobe input
• 30mm industrial extrusion
• 5-pin M12 quick connect
• This light is in compliance with IEC 62471 standards and has been tested in our in house IEC safety laboratory
