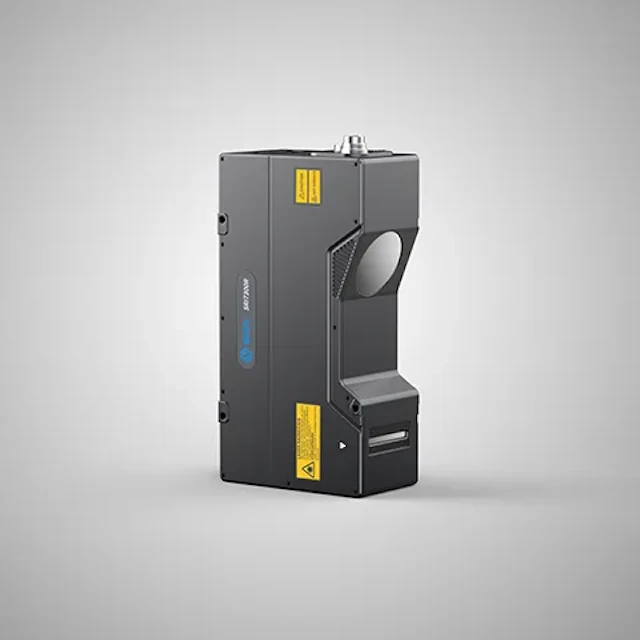

Reference Distance (CD)
270mm
-
Measuring Range | Z-axis height (FS)
+102mm, -245mm (FS=347mm)
-
Measuring Range | X-axis Width | Near Side
225mm
-
Measuring Range | X-axis Width | Reference Distance
320mm
-
Measuring Range | X-axis Width | Remote Side
540mm
-
Light Source | Light Source Wavelength
450nm
-
Light Source | Laser Class
3R
-
Light Source | Laser Output Power
50mW
-
Repetition Accuracy | Z-axis (height)
8μm
-
Repetition Accuracy | X-axis (width)
25μm
-
Linearity | Z-axis (height)
±0.01% of F.S.
-
Contour Data Interval | X-axis (width)
100μm
-
X-axis Contour Points
3200
-
Scanning Speed (Hz)
1000-10000Hz
-
Dimension (mm)
218 x67x 116mm
-
Weight (g)
2000
-
Temperature Characteristic
0.01% F.S./℃
-
Encoder Input
Differential encoder (trigger)④, start signal⑤
-
Input/Output
One 100Base-TX/1000Base-T Ethernet interface
-
Input Voltage
DC 24V（36W)
-
Operation Temperature
0～50℃
-
Storage Temperature
-20～70℃
-
Working Humidity
35% to 85% without condensation
-
ESD Protection
Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards
-
EFT Protection
Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards
-
Impact
50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard
-
Vibration
10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard
-
Degrees of Protection Provided by Enclosure
IP67, in accordance with IEC 60529 standard
-
Data Cable (Network Cable) Model
Type L: SCB-HNET-HR2Z-3m/6m/10m | Type I: SCB-HNET-HB2Z-3m/6m/10m
-
Data Cable (IO Cable) Model
Type L: SCB-HIO-HR2Z-3m/6m/10m | Type I: SCB-HIO-HB2Z-3m/6m/10m
