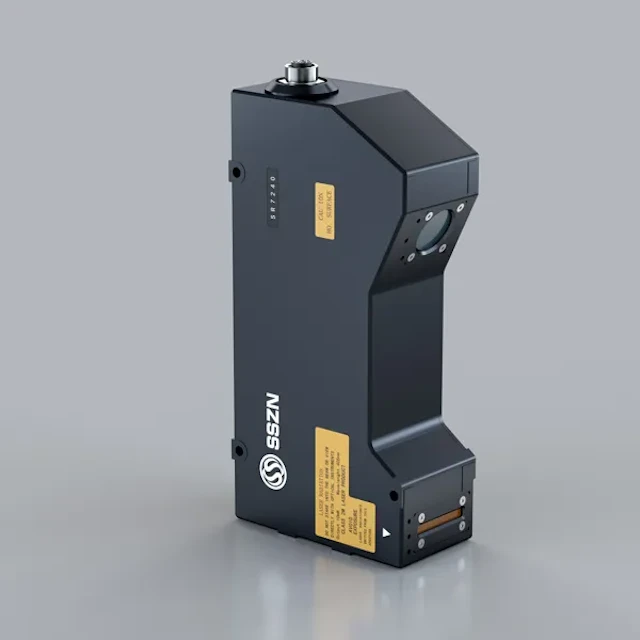

SinceVision SR Series SR7240

Highlights

The SinceVision SR Series SR7240 has a rich product matrix and can respond to various application scenarios and requirements.

Reference Distance (CD)

240mm
Measuring Range | Z-axis height (FS)

40mm
Measuring Range | X-axis Width | Near Side

138mm
Measuring Range | X-axis Width | Reference Distance

147mm
Measuring Range | X-axis Width | Remote Side

157mm
Light Source | Light Source Wavelength

405nm blue light
Light Source | Laser Class

2M
Light Source | Laser Output Power

10mW
Repetition Accuracy | Z-axis (height)

1μm
Repetition Accuracy | X-axis (width)

13μm
Linearity | Z-axis (height)

±0.05% F.S.
Contour Data Interval | X-axis (width)

50μm
X-axis Contour Points

3200
Reflection Angle (°)

26
Scanning Speed (Hz)

2500 ~ 10000
Dimension (mm)

189.5×93×48
Weight (g)

840
Temperature Characteristic

0.02% F.S./℃
Encoder Input

Single-ended, differential encoder is supported
Input/Output

One 100Base-TX/1000Base-T Ethernet interface
Operation Temperature

0～50℃
Storage Temperature

-20～70℃
Working Humidity

35% to 85% without condensation
ESD Protection

Contact discharge 4kV, air discharge 8kV, in accordance with IEC 61000-4-2 standards
EFT Protection

Power port 2kV/5 or 100kHz, signal port 1kV/5 or 100kHz, in accordance with IEC 61000-4-4 standards
Impact

50Gs/3ms per axis, in accordance with IEC 68-2-27 Ea standard
Vibration

10Gs (10-500Hz), compliant with IEC 68-2-6 Fc standard
Degrees of Protection Provided by Enclosure

IP67, in accordance with IEC 60529 standard
