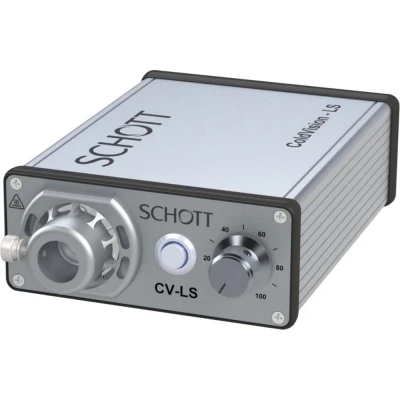

Schott CV-LS A20980/6000K

Highlights

The Schott CV-LS A20980/6000K machine vision light source breaks new ground for its high-efficiency output in a compact footprint with versatile connectivity. The Cold Vision LED light source (CV-LS) series has high brightness with robust connectivity. This flagship light source’s appearance may be similar to previous models, but the design has been improved with an upgraded new set of high brightness LED light engines and cooling system for greatly increased light output, beyond 150W EJA Halogen lamp levels for the cool white model. The entire internal design has been revamped for improved efficiency, ESD handling, and robust connectivity and controls. Upon initial release, the Cool White, Warm White, and RGBW models will be available, with other color options in the future. The Schott CV-LS A20980/6000K LED Light Source has a 6000K Color Temperature

Schott CV-LS A20980/6000K Features

  • ColdFusion Light guide compatible
  • Long life, high efficiency LED engine
  • Internal light feedback stabilization
  • Analog and the digital remote control: USB (Virtual RS232), RS232, Dual Ethernet, Multiport
  • Fast triggered strobe (25μs rise time, 1 μs precision )
  • Improved resistance to vibration & shock
  • Improved ESD Immunity (Heavy Industrial)
  • Small footprint, backward compatible
  • Universal input power supply
  • RoHS compliant, ETL Approved
  • All connectors with retention mechanisms
  • The Schott CV-LS A20980/6000K machine vision light source replaces A20970– Call for compatibility issues

Product Specifications

Schott
Schott CV-LS A20980/6000K
