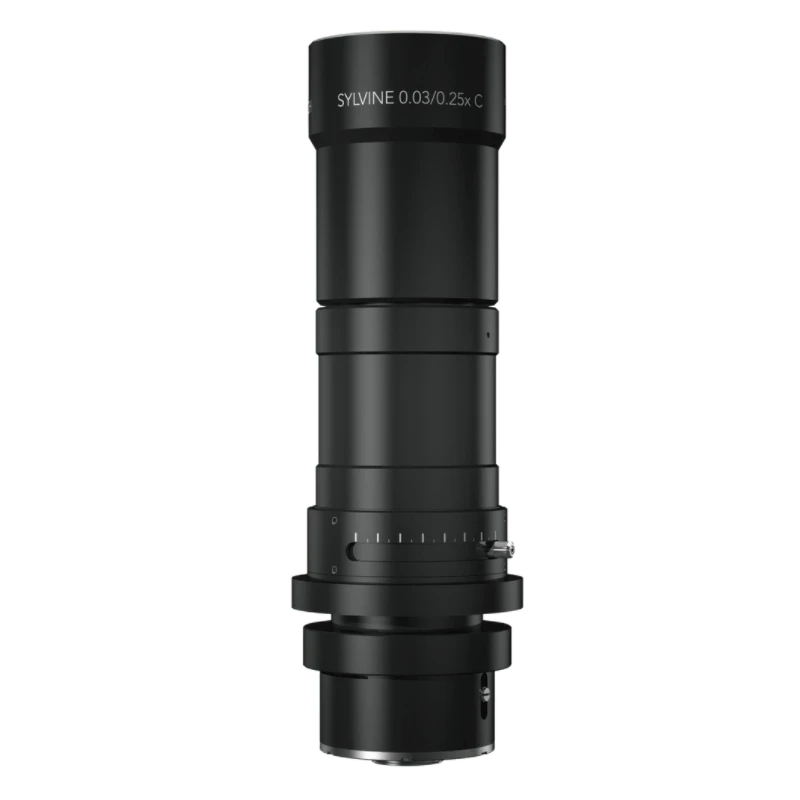

Schneider Optics Sylvine 0.03/0.25x C

Highlights

The Sylvine Series, Sylvine 0.03/0.25x C features bilateral telecentric 2/3″ C-Mount lenses for 0.2x – 1x magnification are precise instruments for accurate dimensional measurement and high resolution micro inspection. The special telecentric design is the key for easy inspection of holes and tubes. Telecentricity not only on the object but also on the sensor side keeps the image position even with slight defocusing or sensor misalignment.

Features

Bilateral telecentric design
Very high resolution down to 2.4µ pixel size
2/3″ (11 mm) max. sensor size
C-Mount lens
5 magnifications: 0.2x – 1x

Applications

High-Precision Measurement
Tube Inspection
Jewel Inspection
Micro Defect Detection
