Schneider Optics Sapphire 0.05/0.5x V70

Highlights

The Sapphire Series, Sapphire 0.05/0.5x V70 features highspeed lenses that are optimized for 16k / 3.5 µm and 12k / 5µm (SAPPHIRE XL: 16 k / 5µm) line scan sensors but also can be used in many applications with area sensors up to 82 mm diagonal. Optimized for a specific magnification of 0.07x – 2.0x the lenses providing high performance in a compact and robust package. The V70-Mount interface makes it easy to install numerous mounts and allows the rotation of the lens into the best azimuth.

Features

  • Extremely high resolution down to 3.5µ pixel size
  • Image circle: 62.5 mm – 82 mm
  • Optimized for specific magnifications
  • 11 magnifications available: 0.07x – 2.0x
  • Version with Beamsplitter available
  • Best azimuth marking
  • V70-Mount for easy installation

Applications

  • FPD inspection
  • PCB inspection
  • High resolution defect detection
  • AOI (Automated Optical Inspection)

Product Specifications

Schneider Optics

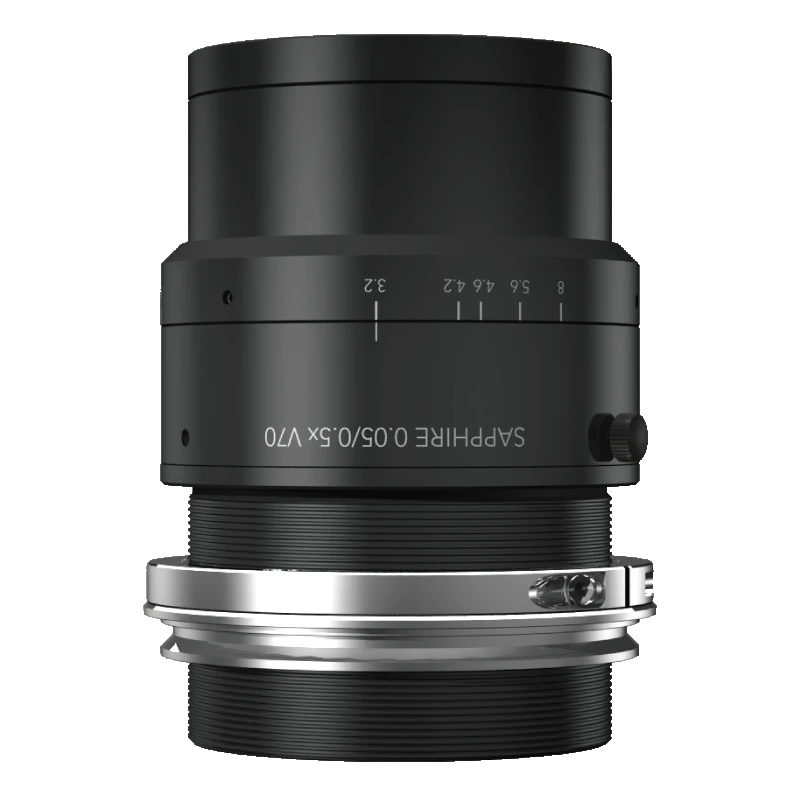

Schneider Optics Sapphire 0.05/0.5x V70-Photo-1
