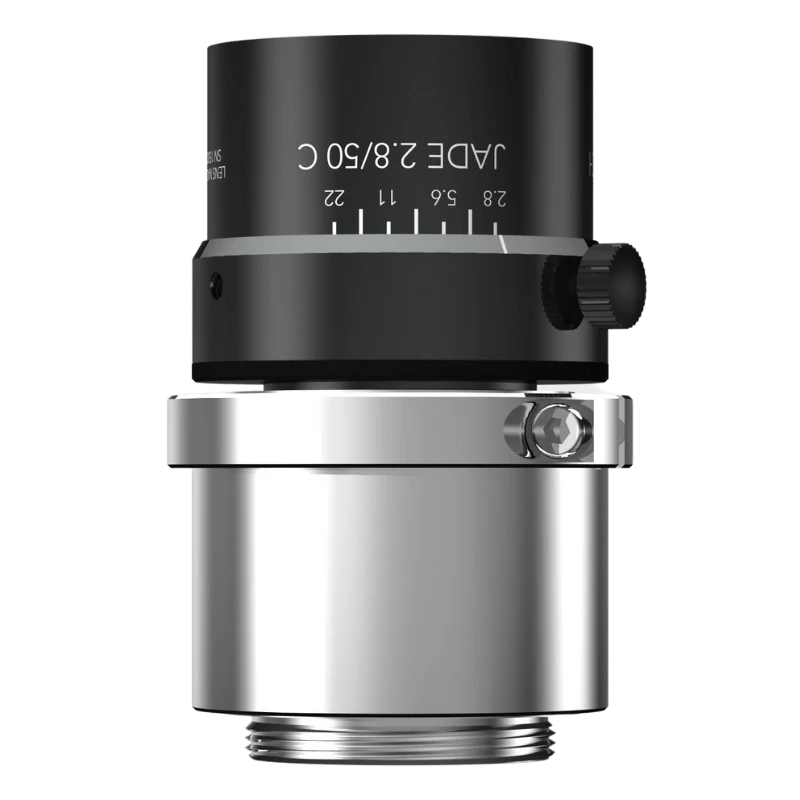

Schneider Optics Jade 2.8/50 C

Highlights

The Jade series features C-Mount lenses with 19.3 mm image circle and 400-1000 nm broadband AR coating are designed for 24.5 M / 2.74 µm pixel Sony’s 4th Gen Pregius S™ technology and similar sensors. The anti-shading design prevents shading caused by micro lenses and results in a very even light distribution. A robust metal housing ensures a stable image position even under harsh environmental conditions.

Features

1.2″ (19.3 mm) max. sensor size
Very high resolution down to 2.4µ pixel size
Low chief ray angle suitable for all SONY Pregius™ generations
C-Mount
5 focal lengths: 12 mm – 50 mm
Initial aperture F2.8

Applications

Machine Vision
AOI (Automated Optical Inspection)
3D and 2D measurement
Robotic Vision
