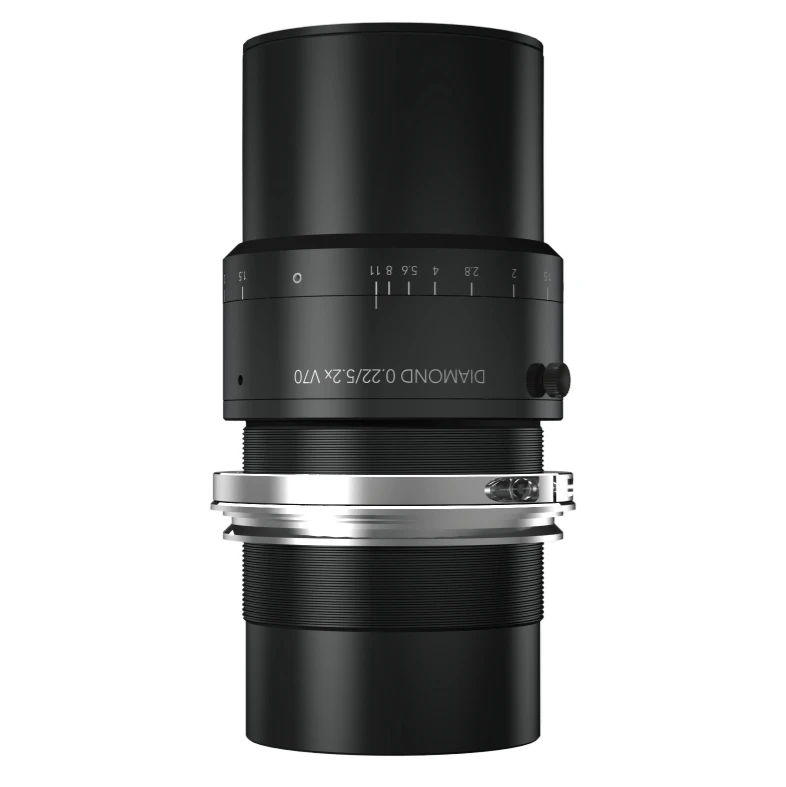

Schneider Optics Diamond 0.22/5.2x V70

Highlights

The Diamond Series, Diamond 0.22/5.2x V70 features high magnification lenses that are optimized for 12k / 5µm  (DIAMOND XL: 16k / 5µm) line scan sensors but also can be used in many applications with 16k / 3.5µm line scan sensors and area sensors up to 82 mm diagonal. Optimized for a specific magnification of 2.6x – 5.2x the lenses providing high performance in a compact and robust package. The V70-Mount interface makes it easy to install numerous mounts and allows the rotation of the lens into the best azimuth.

Features

• Extremely high resolution down to 3.5µ pixel size
• Image circle: 62.5 mm – 82 mm
• Optimized for specific magnifications
• 5 magnifications available: 2.6x – 5.2x
• Versions with beampslitter available
• Best azimuth marking
• V-Mount for easy installation

Applications

• FPD inspection
• PCB inspection
• Micro defect detection
• AOI (Automated Optical Inspection)
