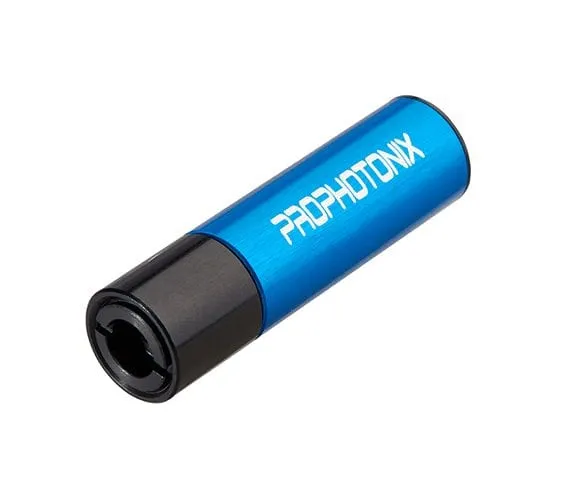

ProPhotonix Photon Laser Diode


The ProPhotonix Photon laser diode module range has been designed as a complete solution for OEM use. This compact and self-contained design is available in a wide range of wavelengths and power levels, making it suitable for a broad range of applications. The range offers high reliability and is available with CW or TTL modulation. A 25mm flange is an option to allow for easier mounting. The Prophotonix Photon Laser Diode Modules are available with elliptical or circular beams. Optics are adjustable to allow customers increased flexibility. Different colored barrels are available for identification purposes. Line generating options are also available. ProPhotonix has more than fifteen years of experience in providing lasers for some of the most demanding environments and can provide custom solutions for specific applications.


  • Now available in blue (488m)
  • Elliptical and circular beam, line generating optics available
  • Compact & self-contained design
  • High reliability
  • Adjustable optics
  • Available wavelengths include 488nm, 520nm, 635nm, and 830nm
  • Optical output powers from 0.9mW to 85mW
  • CW or TTL modulation options
  • Available with a 25mm mounting flange


  • Industrial Alignment & Positioning
  • Fluorescence
  • Industrial Inspection
  • Low-Level Laser Therapy
  • Spectroscopy
  • Sensors
  • Particle Measurement

Product Specifications

ProPhotonix Photon Laser Diode
