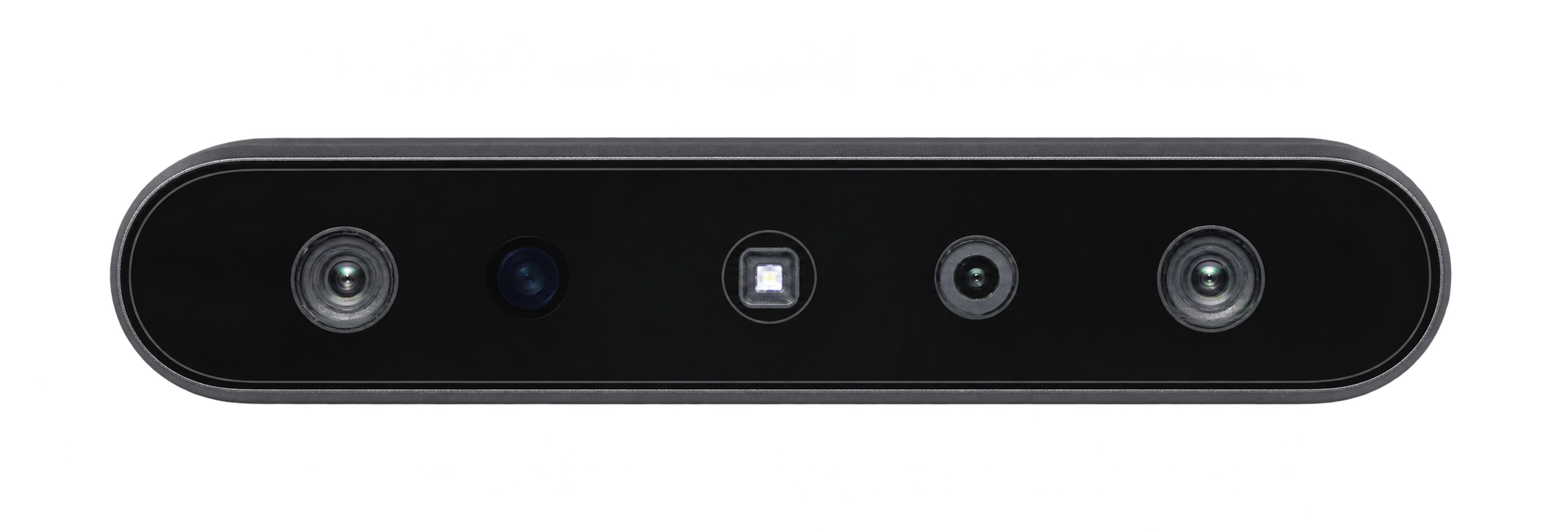

Orbbec Gemini 215 Stereo Vision Camera

Orbbec Gemini 215 is a high-precision active stereo vision camera designed for detailed short-range 3D scanning of body parts, objects, and other fine surfaces. Part of the Gemini 210 Series, it combines a 75 mm stereo baseline with Orbbec MX6600 on-chip depth processing and an 850 nm infrared projection system.

The Gemini 215 provides depth resolution up to 1280 × 800 at 30 fps across a specialized 0.15 m to 0.70 m depth range. It delivers spatial precision better than 0.5 mm at 0.3 m and minimum point spacing of just 0.16 mm at 0.15 m, enabling detailed real-time 3D reconstruction for close-range scanning applications.

Sub-Millimeter Depth Precision
— Delivers spatial precision better than 0.5 mm at 300 mm for detailed close-range 3D reconstruction.

Ultra-Fine Point Resolution
— Achieves minimum point spacing of 0.16 mm at 150 mm for capturing fine surface detail.

Short-Range Active Stereo
— Optimized for scanning from 0.15 to 0.70 m, including textureless indoor surfaces.

MX6600 On-Chip Processing
— Dedicated depth processing provides real-time 1280 × 800 depth output without requiring external depth computation.

Synchronized RGB-D Imaging
— Combines high-resolution depth with up to 1920 × 1080 RGB imaging for detailed color 3D models.

Multi-Camera Synchronization
— Hardware synchronization supports multiple cameras for expanded scanning coverage and larger reconstruction areas.
