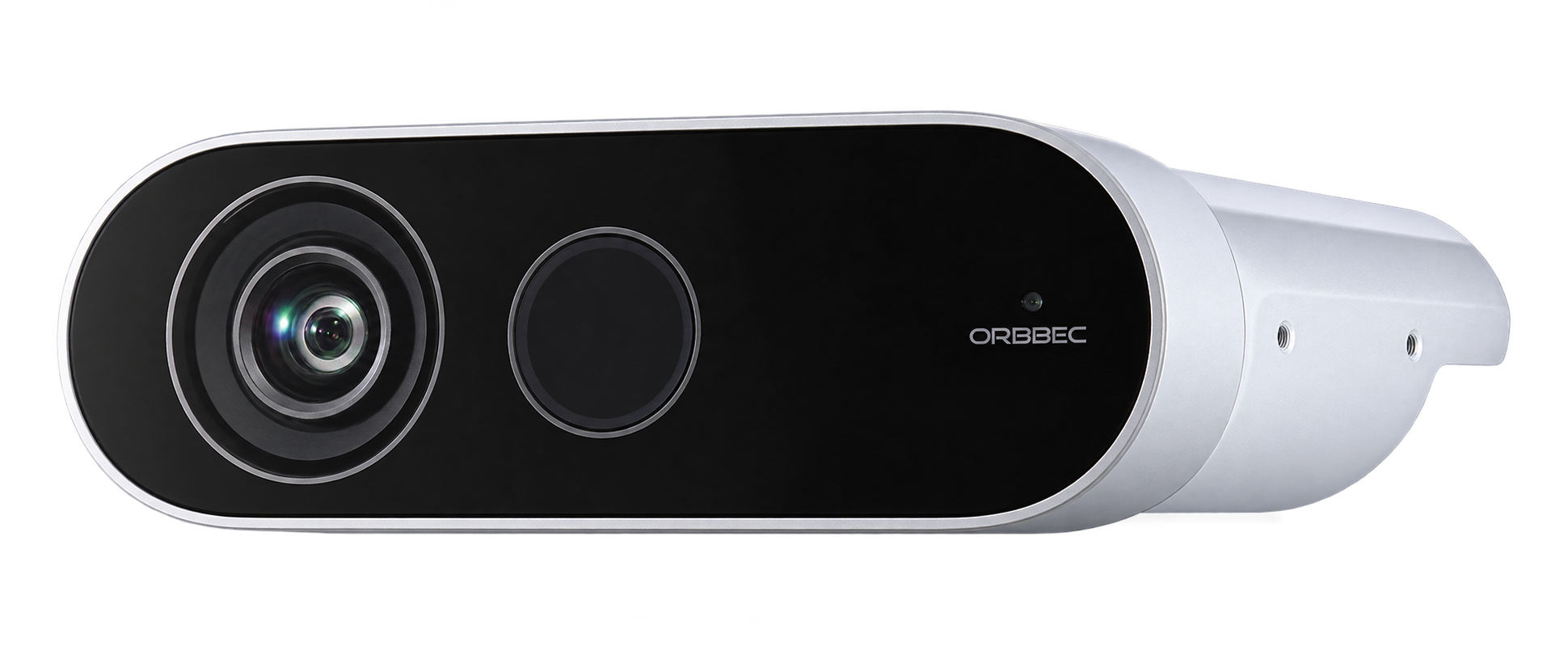

Orbbec Femto Mega Time-of-Flight 3D Camera

Orbbec Femto Mega is a programmable indirect Time-of-Flight 3D camera combining Microsoft ToF technology with an NVIDIA Jetson Nano for in-camera depth processing. It provides real-time RGB-D streaming over USB 3.0 or Gigabit Ethernet with PoE support for robotics, manufacturing, logistics, healthtech, and AI vision systems.

Femto Mega supports depth resolution up to 1024 × 1024, a mode-dependent operating range from 0.25 m to 5.46 m, and an ultra-wide 120° × 120° depth field of view. Integrated 4K RGB imaging, a 6 DoF IMU, and hardware multi-camera synchronization enable advanced multi-sensor perception and measurement applications.

1 MP Time-of-Flight Depth
— Provides high-resolution depth up to 1024 × 1024 with selectable wide and narrow field-of-view operating modes.

120° Ultra-Wide Depth FOV
— WFOV operation provides 120° horizontal and vertical coverage for large-area sensing and full-scene perception.

NVIDIA Jetson Processing
— Integrated Jetson Nano processing enables real-time depth and RGB output without requiring dedicated host-side depth processing.

USB & Gigabit Ethernet
— Supports USB 3.0 Type-C and Gigabit Ethernet connectivity with PoE+ for flexible local and networked installations.

4K RGB Imaging
— Captures RGB video up to 3840 × 2160 at 25 fps for detailed color-assisted measurement and RGB-D vision.

Multi-Camera Synchronization
— An 8-pin synchronization interface and precision trigger support coordinated multi-camera and multi-sensor systems.
