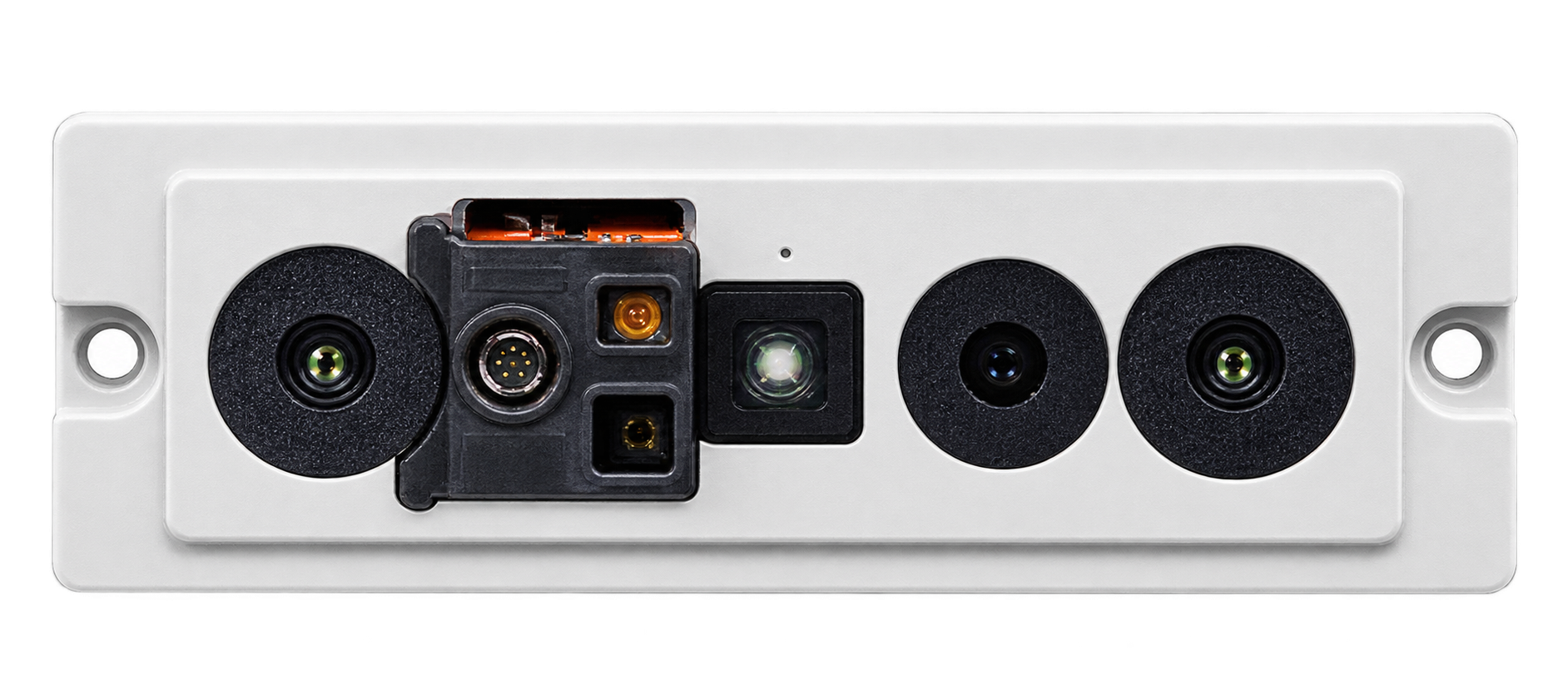

Orbbec Astra Stereo S U3 3D Camera

Orbbec Astra Stereo S U3 is an ultra-compact active stereo IR 3D camera designed for close-range, high-precision depth applications. It combines Orbbec ASIC depth processing with 940 nm infrared illumination and single-cable USB Type-C connectivity in a lightweight 30 g housing.

The Astra Stereo S U3 provides depth resolution up to 1280 × 800 at 30 fps, a 0.25 m to 2.5 m depth range, and a 67.9° × 45.3° depth field of view. With spatial precision of ±5 mm at 1 m and RGB imaging up to 1920 × 1080 at 30 fps, it is suited to compact robotic, measurement, identification, and retail vision systems.

Compact Active Stereo IR
— 940 nm active stereo depth sensing provides reliable close-range 3D data in a compact camera body.

High-Resolution Depth
— Supports depth output up to 1280 × 800 at 30 fps or 640 × 400 at 60 fps.

Close-Range Precision
— Provides depth from 0.25 to 2.5 m with spatial precision of ±5 mm at 1 m.

Full HD RGB Imaging
— Captures RGB video up to 1920 × 1080 at 30 fps for color-assisted depth applications.

Ultra-Lightweight Design
— Measures only 65.3 × 22.5 × 12.3 mm and weighs approximately 30 g for space-constrained integration.

USB Type-C Connectivity
— Single-cable USB connectivity provides camera data and power with USB 2.0 and USB 3.0 operation.
