KAYA Instruments KY-FEXT

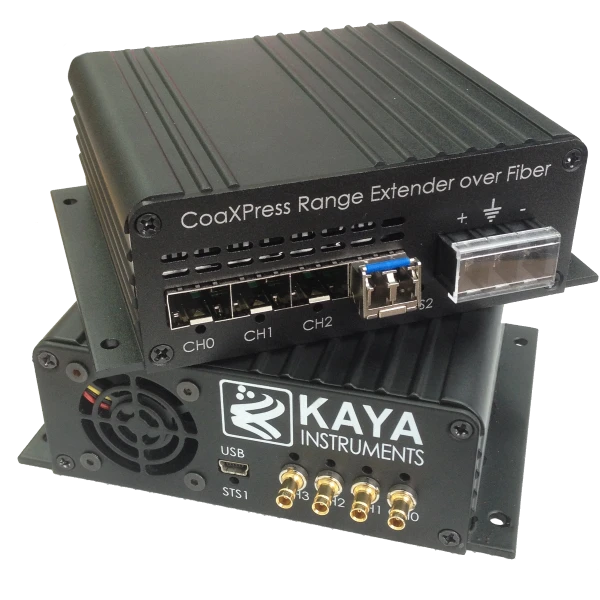

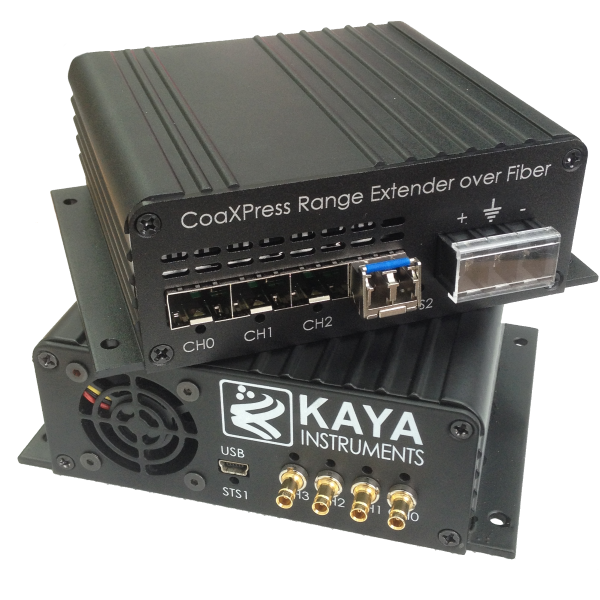

KAYA Instruments KY-FEXT CoaXPress Range Extender over Fiber is the industry’s first CoaXPress range extender which provides a high-resolution stream interface for distances up to 80km in single-mode and up to 300m in multi-mode. Optic fiber is electrically isolated, hence it does not radiate nor is it susceptible to electromagnetic interference, also eliminates the problems associated with grounding. The fiber cable is not easily tapped, providing more secure communication. The system is constructed of two converters, one on the camera side and one on the host side. The converter on the camera side can provide power to the camera over the CoaXPress link, while the converter on the host side can sink power from the frame grabber. The converters use flexible SFP+ modules for optical connection that can be easily changed. The range extender is able to provide an uplink of up to 6.25Gbps and downlink at 20.83Mbps.

KY-FEXT Features

  • Up to 4 CoaXPress 6.25Gbps channels
  • Up to 80km maximum distance
  • Full PoCXP support
  • Plug and Play
  • Extended temperature range
  • JIIA certified product

KAYA Instruments KY-FEXT Specs

  • Coaxpress V1.1 compatible
  • Solves distance limitation of CoaXPress
  • Downlink/Uplink of 6.25 Gbps and 20.83 Mbps respectively
  • Extention for distances up to 80km in single-mode and up to 300m in multi-mode
  • Bidirectional CoaXPress communication
  • Flexible SFP+ module for Fiber connection
  • DIN rail mounting (optional)
  • DIN 1.0/2.3 connectors for CoaXPress link
  • Plug and Play, no need to configure
  • Power over CoaXPress (PoCXP) support
  • 0°C to 50°C operating environment temperature
  • Available in Board level for OEM use (optional)

KY-FEXT Deliverables

  • Host and Device converters
  • SFP+ (optional)
  • Power supply
  • Hardware user manual
  • Coax cables (optional)
  • Fiber cables (optional)
