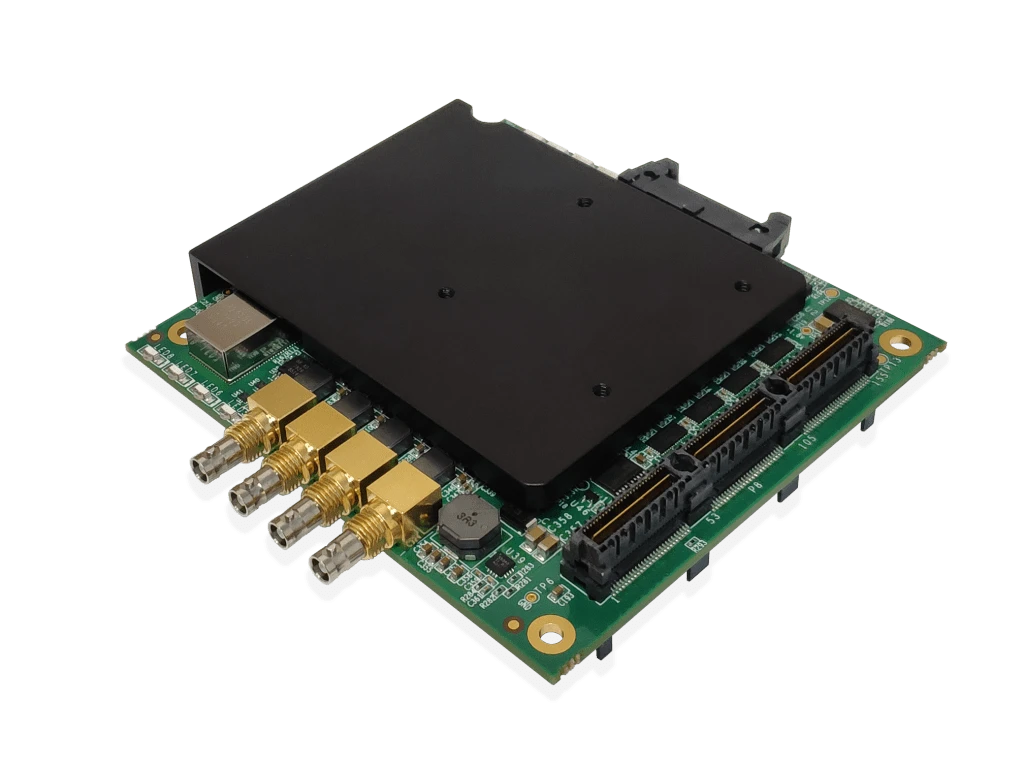

KAYA Instruments Komodo II CoaXPress 12G PCIe/104


The KAYA Instruments Komodo II CoaXPress 12G PCIe/104 is the best in class Frame Grabber, supporting the CoaXPress 2.0 standard. It can receive video streams from up to 4 CoaXPress links in single, dual or quad modes. It can also be used for simultaneous capture from multiple cameras. Each link supports standard CoaXPress bitrates of up to 12.5 Gbps.

The frame grabber utilizes PCIe/104 compact standard. It is rugged, reliable and the four-corner mounting holes make it particularly resistant to shock and vibrations. These features make the Komodo II CoaXPress 12G PCIe/104 ideally suited for industrial, defense and aerospace Machine Vision Systems and applications.

The KAYA Instruments Komodo II CoaXPress 12G PCIe/104 can easily receive video streams on the CoaXPress links and transmit them to computer memory through the PCIe interface. This product also provides an external GPIO for machine control signals, such as triggers, timers, shaft encoders, exposure control and general I/O which can be controlled aside video stream acquisition. Our frame grabber uses standard Micro-BNC connectors as a CoaXPress interface to the camera. It utilizes PCIe Gen3 x8 links for communication with Host PC for video uploading and configuration.


  • 1 to 4 CoaXPress links support
  • PCie 3.0 (Gen 3) x8 bus
  • 2GB DDR4 frame buffer
  • Flexible GPIO interface
  • CoaXPress 2.0 compliant
  • Power over CoaXPress with 13W per link
  • GUI Interface
  • Supporting Windows and Linux OS
  • API for custom application development
  • Plug-in modules for Matlab, HALCON, Cognex, and Labview
  • Gen<i>Cam compliant
