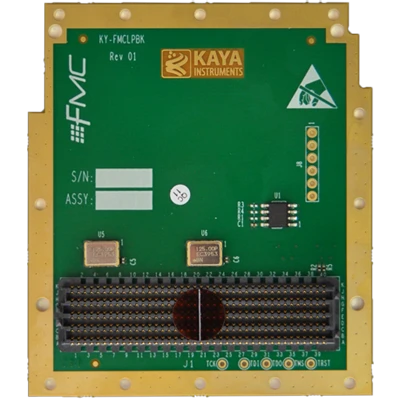

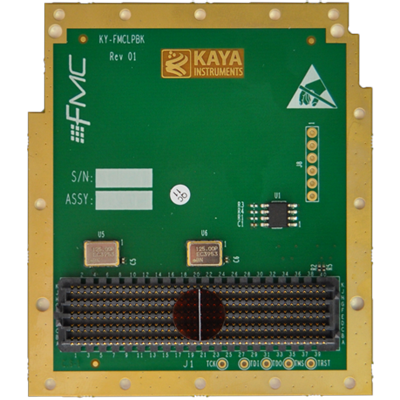

KAYA Instruments FMC Loopback Test Board KY-FMCLPBK


The FMC loopback tester board enables developers and assembly factories to test and characterize the FMC carrier board interfaces. The board features full differential loopbacks on all the FMC high pin count (HPC) connector interfaces including LA, HA, HB, DP and CLK. It also provides a 125MHz transceiver LVDS reference clocks on GBTCLK signals. The FMC loopback board is based on VITA 57 standard with ruggedized conduction or air cooling.


  • FMC carrier board testing during development
  • FMC carrier board electrical validation
  • FMC carrier board testing at assembly facilities


  • VITA 57 FMC compliant
  • HPC – High Pin count connector
  • Provides loopbacks on the LA, HA and HB differentials pairs
  • Provides TX to RX loopbacks on the Multi-gigabit differential pairs DP0 to DP9
  • Ruggedized Conduction or air cooled
  • 125MHz LVDS transceiver reference clocks
  • Led indicator for powers and power good
  • JTAG breakout to test points
  • Clocks:
    – 125MHz LVDS oscillators feed the GBTCLK pairs
    – Loopback of CLKx_C2M to CLKx_M2C pairs
  • FMC IO interface:
    – Loopback of even to odd pairs on LA/HA/HB
    – DP_C2M[9:0] loopback to DP_M2C[9:0]

Product Specifications
