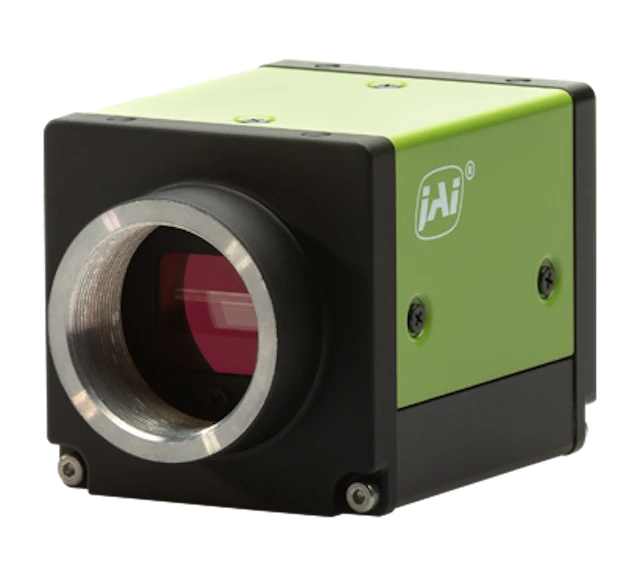

JAI Sweep SW-2005M-CXP

Highlights

The JAI Sweep SW-2005M-CXP is a compact and reliable CMOS monochrome line scan camera with 2K resolution. It features 7 μm x 7 μm pixels and a CoaXPress 2.0 interface operating at CXP-6 speed. With a maximum scan rate of 172 kHz, the camera can deliver a data throughput of up to 6.25 Gbps. It is ideal for wood and print inspection and other flexible web or rigid inspection applications. Additionally, it is well-suited for logistical tasks such as postal or barcode scanning.

• Compact and robust design: At 44mm x 44mm x 54mm, the camera is designed to fit into tight spaces and be easily integrated into existing setups without requiring significant modifications. Its C-mount lens compatibility offers a wide range of lens options for various applications.
• Direct encoder connection: The SW-2005M-CXP supports direct encoder connection with the Trigger Delay function, simplifying setup and enabling automatic scan direction detection. It is ideal for sliding or moving slide tables applications, and encoder signals can be daisy-chained between cameras for seamless multi-camera integration.
• Efficient Data Transfer with 5GigE Interface: The camera leverages the CoaXPress 2.0 standard to support high-speed data transfer at CXP-6 speeds, ensuring efficient handling of large amounts of data. This is particularly beneficial for high-speed production lines and applications requiring real-time processing.

Features

• 2K line scan resolution (2048 monochrome pixels).
• 14.336 mm wide sensor with 7 μm square pixels.
• Up to 172 kHz (172,000 lines/s) scan rate.
• CoaXPress 2.0 standard with CXP-6 speed.
• Direct connection to rotary encoders with resume scanning (via backward counter) and trigger delay function based on trigger counts.
• Horizontal binning.
• Trigger width exposure mode.
• Region of interest.
• Selectable output formats (mono8, mono10 or mono12).
• PRNU/DSNU, gain control and shading correction.
• C-mount lens mount.
• Excellent shock and vibration resistance.

Applications

• Food sorting
• Wood inspection
• Logistics
• Print inspection
• Web applications
