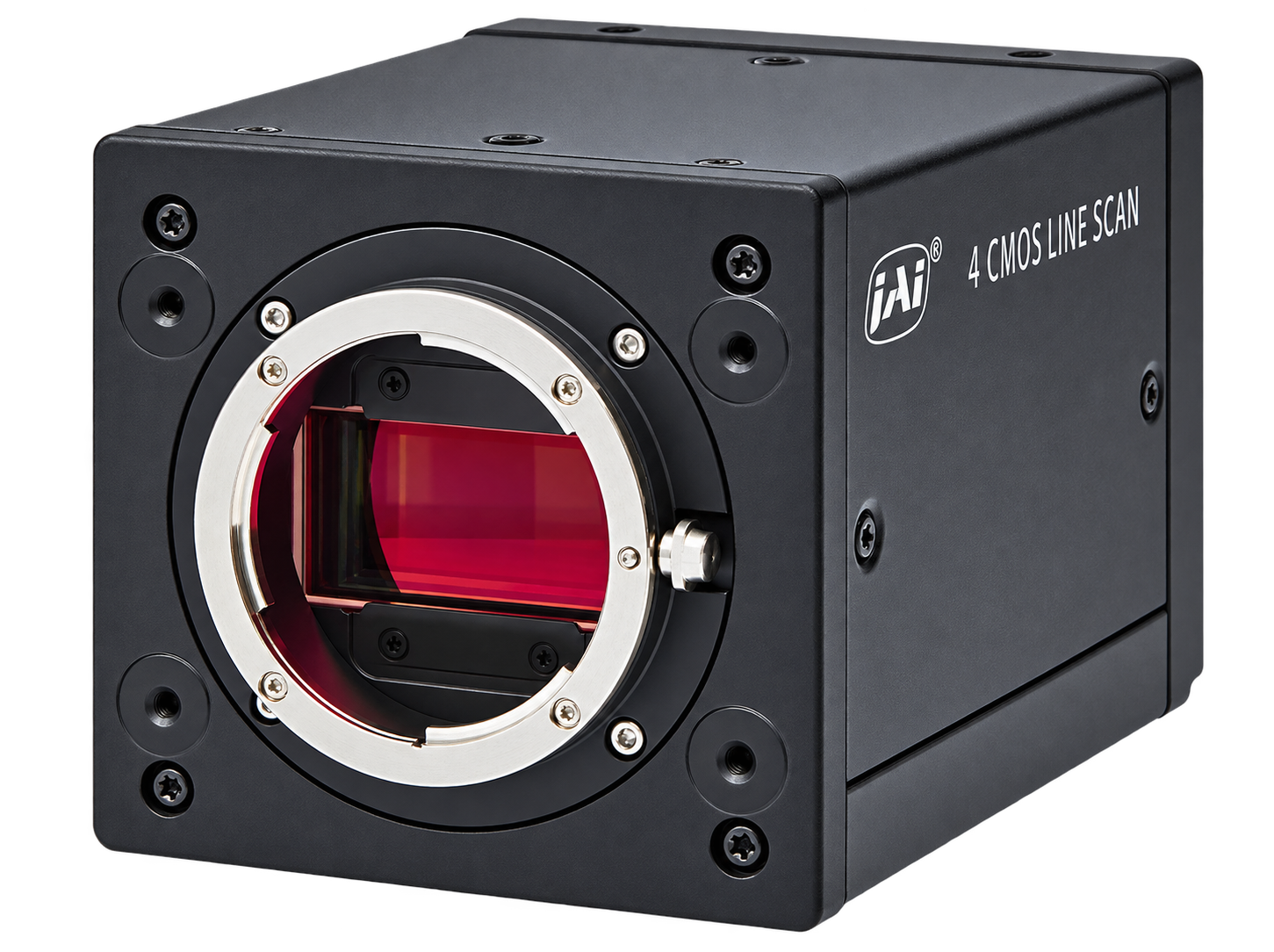

JAI Sweep+ SW-4000Q-CXP2A Camera

Highlights

The JAI Sweep+ SW-4000Q-CXP2A is a 4K multispectral line scan camera using four CMOS sensors and prism technology to simultaneously capture red, green, blue, and near-infrared image data. It provides 4096 pixels per line at line rates of up to 146 kHz for high-speed continuous inspection applications.

A dual-lane CoaXPress 2.0 CXP-12 interface provides high-bandwidth image transmission through two Micro-BNC connections with Power-over-CoaXPress support. The SW-4000Q-CXP2A combines global-shutter operation, selectable pixel sizes, independent R-G-B-NIR channel controls, ROI, binning, color-space conversion, and advanced image-correction functions.

Features

• 4K line scan resolution with 4096 pixels per line
• Up to 146 kHz line rate for high-speed continuous imaging
• Four CMOS sensors for simultaneous R-G-B and NIR acquisition
• Prism-based multispectral imaging using a common optical path for all four channels
• CoaXPress 2.0 CXP-12 interface using two CoaXPress lanes
• Power-over-CoaXPress support with triggering through the CoaXPress connection
• Global shutter for precise line scan acquisition
• Selectable pixel sizes of 7.5 × 7.5 µm or 7.5 × 10.5 µm
• Independent gain and exposure control for the red, green, blue, and NIR channels
• ROI capability for increasing scan rates with reduced image regions
• 1×2, 2×1, and 2×2 binning for increased light sensitivity
• Built-in color-space conversion supporting HSI, CIE XYZ, sRGB, Adobe RGB, and custom RGB formats
• Image correction functions including PRNU/DSNU, flat shading, color shading, and chromatic aberration adjustment
• F-mount or M52-mount lens mounting options

Applications

• Battery inspection
• Food quality inspection
• Nuts and grain inspection
• Fruit and vegetable sorting
• Waste management and recycling
• Print inspection
• Web and roll-to-roll material inspection
• Semiconductor inspection
• Flat-panel display inspection
