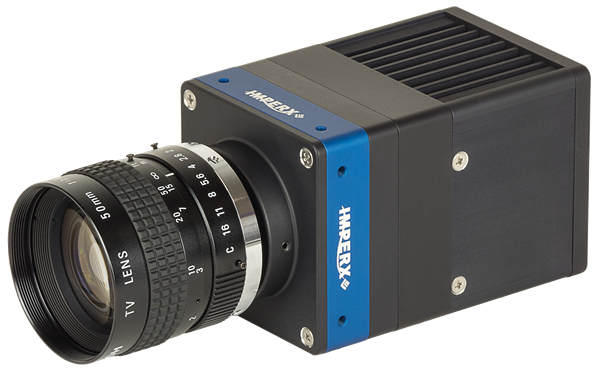

Imperx Cheetah SFP-C1941 Camera

Highlights

The Imperx Cheetah SFP-C1941 is a ruggedized 2.86 MP CMOS area scan camera designed for high-speed and precision imaging. Its Sony Pregius IMX421 global-shutter sensor delivers a native resolution of 1920 × 1472 pixels and full-resolution acquisition at up to 319.4 frames per second.

A 10 GigE Vision interface with an open SFP+ slot supports high-bandwidth image transmission over compatible fiber or copper connections. The SFP-C1941 is available in separate monochrome and Bayer color variants and combines a 2/3-inch optical format, 4.5 µm pixels, IEEE 1588 PTP synchronization, Scheduled Action Commands, flexible triggering, and onboard image-correction functions.

Features

• 2.86 MP resolution with a native image size of 1920 × 1472 pixels
• Sony Pregius IMX421 sensor with global-shutter CMOS technology
• Up to 319.4 fps at full resolution with 8-bit output
• 10 GigE Vision connectivity through an open SFP+ transceiver slot
• Fiber or copper transmission using a compatible SFP+ transceiver module
• GigE Vision 2.0 compliance with IEEE 1588 PTP synchronization
• Scheduled Action Commands for synchronized camera acquisition
• 2/3-inch optical format with an 8.6 × 6.6 mm imaging area
• 4.5 µm square pixels for detailed high-speed imaging
• Monochrome or Bayer color sensor variants
• Flexible lens mounting with C-mount standard and optional F-mount, M42, or Canon EF mounts
• 8-bit, 10-bit, or 12-bit output with packed and unpacked transmission modes
• Programmable triggering and strobes with trigger-over-Ethernet support
• Image-correction functions including LUTs, defective-pixel correction, and flat-field correction

Applications

• Machine vision
• High-speed motion analysis
• Printed circuit board inspection
• Ball grid array inspection
• Aerospace imaging
• Satellite imaging
• Surveillance systems
• Unmanned aerial vehicle imaging
• Intelligent traffic systems
• Aerial imaging
• Open-road tolling systems
• Situational awareness
