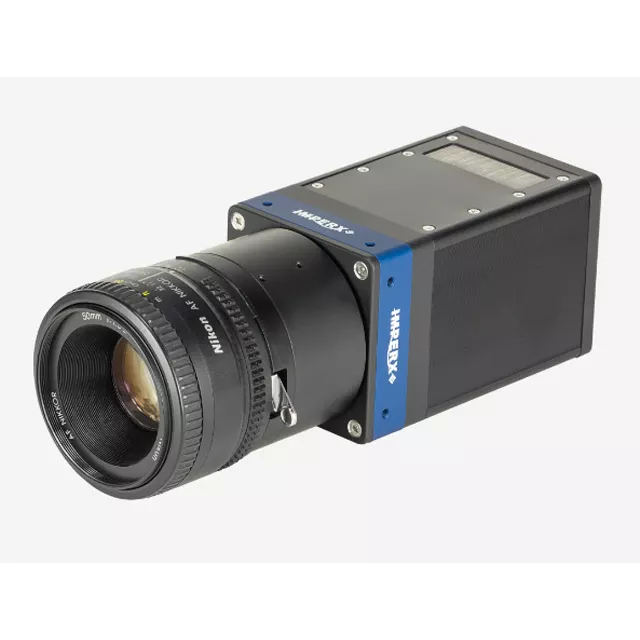

Imperx Cheetah 10 GigE Over Fiber SFP-C5440-R


The C5440 is our most technically advanced, ruggedized, progressive scan digital camera in a compact design ideal for industrial, scientific, medical, aerospace, transportation and other applications. The C5440 incorporates a number of unique features tailored to reduce system complexity, maximize interface bandwidth, and expand the usable operational range.

The C5440 features the Sony Pregius IMX387 Global Shutter CMOS image sensor with a native resolution of 5472 x 3084 in a 4/3” optical format delivering up to 61.3 frames per second and supports the following outputs: 10 GigE Vision® w/PoE (10G), 10 GigE Vision® over fiber (SFP), and 2-channel CXP-12 CoaXPress® w/PoCXP (CXP). CMOS technology eliminates smear columns from areas of ultra-bright intensity and specular reflections in uncontrolled lighting applications. The camera has excellent sensitivity, fast frame rates, exceptional dynamic range and supports strobe outputs, trigger inputs, automatic exposure, automatic gain control with multiple LUTs, and other high-value functions.

Product Specifications

Imperx (Cameras)
Imperx Cheetah 10 GigE Over Fiber SFP-C5440-R

Available Variations
