Gardasoft Trigger Timing Controller

Highlights:

When combining lighting, cameras, proximity sensors, and encoders to generate an automated solution, the Gardasoft Trigger Timing Controller is the single component for fast affordable integration. With 8 independent input channels, the controller can take a range of input signals from various components and use these to trigger events on any of the 8 independent output channels. Each of the 8 output channels can be individually programmed offering complete control over the pulse delay and pulse width, as well as a trigger delay enabling filtering of noisy trigger signals. In applications where encoders are connected to the input channels, outputs can be configured as functions of encoder pulses rather than absolute time values, creating a very versatile solution.

Ethernet-enabled as standard, the Gardasoft Trigger Timing Controller can be quickly configured using free software, or even simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third-party software package the CC320 has a simple command set that is detailed in the manual allowing easy communication. As will all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected. The different ways the CC320 can be configured are endless.

Gardasoft Trigger Timing Controller Features

  • Integrates encoders, cameras, lighting, proximity sensors, reject gates
  • Fast and simple set up – no complicated programming routines
  • Ethernet-enabled for remote interfacing
  • Fast and accurate timing functions
  • Small compact size
  • A true single component solution for machine vision integration applications
  • Camera trigger timing
  • Reject gate timing
  • Remote digital input and output

Product Specifications

Gardasoft

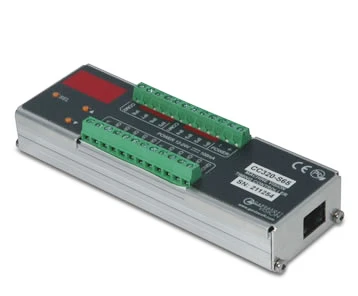

Gardasoft Trigger Timing Controller-Photo-1
Gardasoft Trigger Timing Controller-Photo-2
  • Gardasoft Trigger Timing Controller-Photo-thumb-1
  • Gardasoft Trigger Timing Controller-Photo-thumb-2
