Gardasoft TR-CL Series


The Gardasoft TR-CL Series are single-channel industrial Lens Controllers which provide very accurate and repeatable control of tunable lenses, they have been developed in close collaboration with Optotune. The TR-CL controllers include constant current Lens drive and Lens EEPROM data communications and are compatible with Optotune EL-10-30-Ci and EL-16-40-TC tunable lenses. With a fast focus change (1ms), the Gardasoft TR-CL Series enables dynamic lens control in Machine Vision applications which require varying height objects – Postal identification, for example, Microscopy, and Life Sciences are other key market sectors for tunable lens control, addressing applications such as Z slices, Light-sheet imaging, In vivo (live tissue) imaging, and many types of automated imaging. There is a National Instruments LabVIEW Utility available for the TR-CL Series, and this is particularly relevant for applications in these sectors.

Gardasoft TR-CL Industrial Lens Controller Features

  • One channel high-resolution output
  • Include constant current Lens drive and Lens EEPROM data communications
  • -400mA to +400mA in 0.1mA steps
  • Compatible with Optotune EL-10-30-Ci and EL-16-40-TC lenses
  • Full current calibration with lens temperature compensation

Application Benefits

  • Industrial, precision control for Optotune lenses
  • Easy connection with cameras and lighting via triniti Intelligent Machine Vision platform
  • GigE Vision compliance, lenses therefore easily integrated with standard Image Processes software

Product Specifications

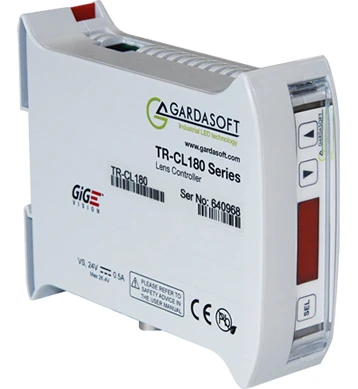

Gardasoft TR-CL Series-Photo-1
