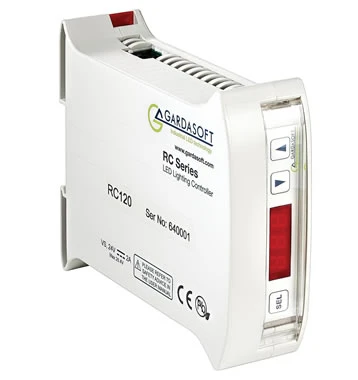

Gardasoft RC Series Controllers


The Gardasoft RC Series Controllers is the latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of perhaps having to use a bespoke DC power supply or heat sinking the controller. All RC models also include our SafeSense™ technology. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft RC Series controllers are therefore single-channel current source devices.

The Gardasoft RC Series models can be quickly configured using free software, or for the Ethernet-enabled RC120 controller, simply by accessing the controller via your internet browser; type the IP address for the controller into your browser and you have full access to all of the parameters. Using a third party software package? Not a problem, the RC range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.

Using our patented SafeSense™ technology, the RC range allows you to overdrive your LED lights safe in the knowledge that the lights will be protected from damage. The RC Series will protect the lights ensuring that the high current pulses are regulated in terms of pulse width timing and frequency. The end result is you get the maximum light possible for your application. SafePower™ now allows you to overdrive the lights without having to increase the input power supply voltage (which you need to do with the Gardasoft PP range), making implementation and system integration much simpler). Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS.


  • Entry-level controllers
  • Single-channel LED control
  • Push-button and Ethernet configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Compatible with nearly any LED lighting assembly available today

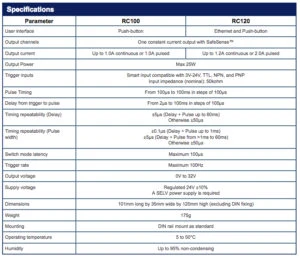

Product Specifications

Gardasoft RC Series Controllers
