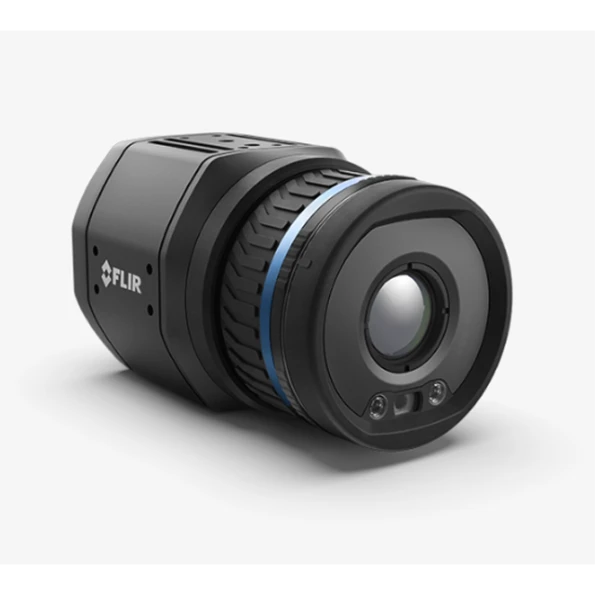

Flir Thermal Image Streaming A700 Advanced

Highlights

The FLIR A700 Advanced Thermal Image Streaming Cameras offer the monitoring capabilities needed to accurately detect and identify thermal issues across manufacturing and industrial processes. With multiple field-of-view choices, multi-streaming capabilities, motorized focus control, and optional compressed radiometric streaming over Wi-Fi, these fixed-mount camera solutions can tackle the most complex remote monitoring objectives. The FLIR A700 advanced easy configuration allows you to tailor this monitoring system to your company’s quality, productivity, maintenance, and safety needs.

Features:

Plug & Play With Support for Multiple Protocols:
- GigE Vision and GenICam compliance for simplified integration with existing monitoring systems; advanced configuration supports both GigE and RTSP video
Seamless Integration With Existing Systems
- Compressed radiometric streaming cuts bandwidth, making it possible to add multiple cameras without the cost of expanding infrastructure (advanced)
World Class Thermal Imaging Capabilities
- Provides exceptional image quality with up to 640 × 480 (307,200 pixels) and superior measurement accuracy (<±2°C)

Product Specifications

Contrast Enhancement

RTSP and GVSP video streaming: FSX® / Histogram equalization (IR only)
Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
Base Mounting

4× M4 on 4 sides
Encoding

RTSP video streaming: H.264 / MPEG4 / MJPEG RTSP radiometric streaming: compressed JPEG-LS, FLIR radiometric GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric
Housing Material

Aluminium
IR Resolution

640 × 480 pixels
Focal Length

N/A
Object Temperature Range

-20°C to 120°C (-4°F to 248°F), 0°C to 650°C (32°F to 1202°F), 300°C to 2000°C (572°F to 3632°F)
Packaging Size

123mm × 77mm × 77 mm
Thermal Sensitivity/NETD

Lens Dependent
Web Interface

Yes
Weight

0.82 kg (1.8 lb), camera only
Multi-Streaming

RTSP protocol: yes GVSP protocol: no, one stream only
Digital I/O connector type

M12 12-pin A-coded, Male (shared with external power)
Digital I/O isolation voltage

500 VRMS
Digital input purpose

NUC; NUC disable; image TAG (Start, Stop, General); image flow control (acc. SFNC 2.3): • Single frame (on trigg) • Multiframe (on trigg) • Continuous • Frame rate • ROI
Digital Inputs

2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
Digital Output Purpose

Programmatically set; fault (NC)
Digital Outputs

3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
Ethernet

Control, result and image
Ethernet Communication

GigE Vision ver. 1.2 • Client API GenICam compliant • TCP/IP socket-based FLIR proprietary
Ethernet Connector Type

M12 8-pin X-coded, female; RP-SMA, female
Ethernet Power

Power over Ethernet, PoE IEEE 802.3af class 3
Ethernet Protocols

IEEE 1588 • SNMP • TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP
Ethernet Standard

IEEE 802.3
Ethernet Type

100 Mbps
RS-232

M8 A-coded, male connector
WiFi

Optional feature purchased separately. RP-SMA, female connector
Multicast

Yes
Unicast

Yes
Serial Communication

Pan & Tilt control. Pelco D standard HW interface: RS232 and RS485 exclusively
Atmospheric Transmission Correction

Based on inputs of distance, atmospheric temperature, and relative humidity
EMC

ETSI EN 301 489-1 (radio) • ETSI EN 301 489-17 (radio) • EN 61000-4-8 (magnetic field) • FCC 47 CFR Part 15 Class B (emission US) • ISO 13766-1 (EMC - Earth-moving and building construction machinery) • EN ISO 14982 (EMC - Agricultural and forestry machinery)
Emissivity Correction

Variable from 0.01 to 1.0
Encapsulation

IEC 60529, IP 54, IP66 with accessory
Humidity (Operating and Storage)

IEC 60068-2-30/24 hours, 95% relative humidity, 25°C–40°C (77°F–104°F)/2 cycles
Operating Temperature Range

-20°C to 50°C (–4°F to 122°F): • -20°C to 40°C (-4°F to 104°F) (in free air) • 40°C to 50°C (104°F to 122°F) (mounted on cooling plate accessory) Maximum camera case temperature: 65°C (149°F)
Radio Spectrum

FCC 47 CFR Part 15 Class C (2.4 GHz band US) • FCC 47 CFR Part 15 Class E (5 GHz band US) • RSS-247 (2.4 GHz and 5 GHz band Canada) • ETSI EN 300 328 V2.1.1 (2.4 GHz band EU) • ETSI EN 301 893 V2.1.1 (5 GHz band EU)
Tripod Mounting

UNC ¼″-20 on 2 sides
Shock

IEC 60068-2-27, 25 g
Vibration

IEC 60068-2-6, 0.15 mm at 10–58 Hz and 2 g at 58–500 Hz, sinusoidal • IEC 61373 Cat 1 (Railway)
Corrosion

ISO 12944 C4 G or H • EN60068-2-11
Available Lenses

6°, 24°, 14°, 42°
Detector Pitch

24 µm
Focal Plane Array (FPA)

Uncooled microbolometer
Focus

One-shot contrast, motorized, and manual
Image Frequency

30 Hz
Radiometric IR video streaming

GVSP (GigE Vision) protocol
Spectral Range

7.5–14 µm
Streaming Resolution

GVSP video streaming: 640 × 480 pixels GVSP radiometric streaming: 320 × 240 pixels
Video Streaming

RTSP or GVSP (GigE Vision) protocols
Overlay

With / Without
Visible Camera

Optional accessory
External Optics & Windows Correction

Based on input of optics/window transmission and temperature
Measurement Corrections

Global object parameters
Reflected apparent temperature correction

Based on input of reflected temperature
External Power Operation

24/48 V DC 8 W max
Power Connection

M12 12-pin A-coded, male (shared with Digital I/O)
Power Consumption

7.5 W at 24 V DC typical • 7.8 W at 48 V DC typical • 8.1 W at 48 V PoE typical
External Voltage

Allowed range 18–56 V DC
Image Source

RTSP video streaming: visual / IR / MSX® (visual camera is an optional feature) RTSP radiometric streaming: IR camera GVSP video streaming: visual / IR / MSX® (visual camera is an optional feature) GVSP radiometric streaming: IR camera
