EVT Multi-Thermal Inspector System

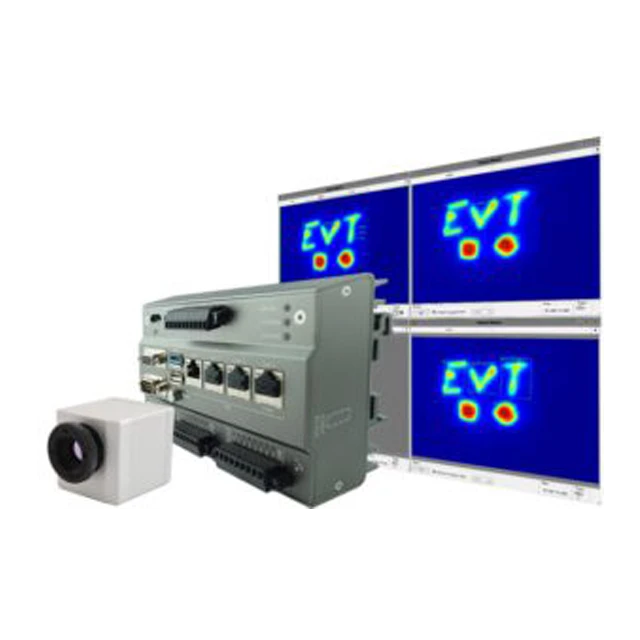

The EVT Smart Multi-Thermal Inspector System (MTI) can monitor an arbitrary number of areas for their correct temperature. Additionally, a warning can be issued, when the temperature is too high or too low. The system is based on the EyeVision software and is easily adapted to your applications. The hardware includes the EmSys computing unit and a thermal imaging camera of the supported makers such as e.g. Optris, Flir, etc.

The Ready-to-use systems offer versatile solutions with only a small amount of adjustment and at the push of a few buttons in industries such as food, beverage, electronic as well as areas such as Deep Learning, Thermal Imaging, 2D, and also 3D image processing. The system includes an already preconfigured EyeVision Software solution for free adaption, as well as an EmSys computing hardware and an industrial camera of one of the supported makers such as Allied Vision Technologies, Basler, Baumer, Teledyne Dalsa, or also thermal imaging cameras by Optris or Flir. There are GigE and USB cameras available.

Definition of Selection Areas

For the definition of the monitored areas, different selection forms can be used. Besides the standard circle and rectangle, also a freely oriented rectangle and a freely definable polygon are available. The user can define an arbitrary number of inspection windows. Several cameras can be connected to the MTI and the statistic feature allows to keep an overview of measurement values and processes.

EVT Multi-Thermal Inspector System Features

For thermal imaging cameras by Flir and Optris Interfaces: GigE, USB, RS232, RS485
easy integration into:

  • Tracker system
  • SPS
communication protocol for:

  • Profinet
  • OPC UA
  • Modbus
  • UDP & TCP/IP
Stand-alone system Headless system

 Interfaces and Protocols

The EVT Multi-Thermal Inspector System can communicate via the hardware interfaces with a tracker-system as well as with SCADA or a PLC. With the communication protocols such as Profinet, Modbus, TCP/IP & UDP the system can communicate with the machine.

Gray/ Color Image Capture Extension

An optional gray-/color image capture extension of the system is also possible and allows the user to capture and evaluate grayscale and color images in addition to the thermal images. For example OCR, DMC, QR, bar code, which cannot be captured with thermal imaging. Also possible is the inspection of a display, for example, a LED which cannot only be inspected for the correct temperature but also for its color.

Monitoring Moving Objects

Even the monitoring of moving objects in the field of view can be solved with a search command, which finds structures in the field of view. All further evaluations can then be carried out at the detected position.
