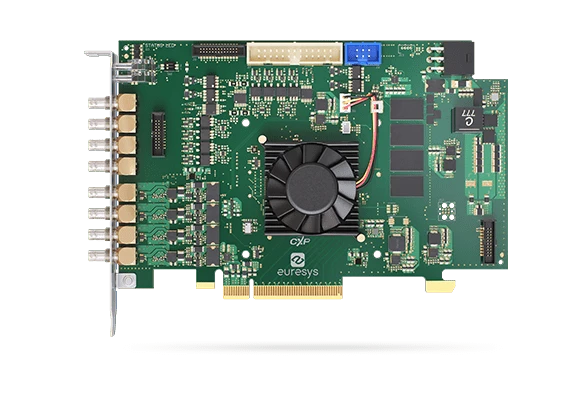

Euresys Coaxlink Quad CXP-12 DF

Highlights

PRELIMINARY Euresys Coaxlink Quad CXP-12 DF is a four-connection CoaXPress CXP-12 frame grabber with Data Forwarding.

Features

Four CoaXPress CXP-12 connections and four Data Forwarding outputs: 5,000 MB/s camera bandwidth
PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
Feature-rich set of 10 digital I/O lines
Extensive camera control functions
Memento Event Logging Tool

Product Specifications

Form Factor

PCI Express card
Format

Standard profile, half length, 8-lane PCI Express card
Cooling Method

Air cooling, fan-cooled heatsink
Mounting

For insertion in a standard height, 8-lane or higher, PCI Express card slot
Connectors (Mechanical)

'A', 'B', 'C', 'D' on bracket: 4x Micro BNC female connectors CoaXPress host interface 'DA', 'DB', 'DC', 'DD' on bracket: 4x Micro BNC female connectors CoaXpress data forwarding interface 'INTERNAL I/O 2' on PCB: 26-pin 2-row 0.1" pitch pin header with shrouding I/O lines and power output 'AUXILIARY POWER INPUT' on module: 6-pin PEG power socket 12 VDC power input for PoCXP camera(s) and I/O 'C2C-LINK' on module: 6-pin 2-row 0.1-in header Card to card link
Switches

'RECOVERY' on PCB: 3-pin 1-row 0.1" header or 2-way DIP switch Firmware emergency recovery
Dimensions

PCB L X H: 167.65 mm x 111.15 mm, 6.6 in x 4.38 in
Weight

TBD
Standard

PCI Express 3.0
Link Width

8 lanes | 1 lane, 2 lanes or 4 lanes with reduced performance
Link Speed

8.0 GT/s (PCIe 3.0) | 5.0 GT/s (PCIe 2.0) with reduced performance
Maximum Payload Size

512 bytes
Peak Delivery Bandwidth

7,800 MB/s
Effective (Sustained) Delivery Bandwidth

6,700 MB/s (Host PC motherboard dependent)
Power Consumption

Typ. TBD W (TBD W @ +3.3V,TBD W @ +12V), excluding camera and I/O power output
Interface Standard(s)

CoaXPress 1.0, 1.1, 1.1.1 and 2.0
Connectors (Camera/Video Input)

Four micro-BNC 75 Ohms (also known as HD-BNC™) CXP-12
Number of Cameras

Area-scan cameras: One 1- or 2- or 4-connection camera Line-scan cameras: One 1- or 2- or 4-connection camera
Maximum Aggregated Camera Data Transfer Rate

5,000 MB/s
Camera Types

Area-scan cameras: One 1- or 2- or 4-connection camera Line-scan cameras: One 1- or 2- or 4-connection camera
Area-Scan Camera Control Trigger

Precise control of asynchronous reset cameras, with exposure control. Support of camera exposure/readout overlap. Support of external hardware trigger, with optional delay and trigger decimation.
Area-Scan Camera Control Strobe

Accurate control of the strobe position for strobed light sources. Support of early and late strobe pulses.
Line-Scan Camera Control Scan/Page Trigger

Precise control of start-of-scan and end-of-scan triggers. Support of external hardware trigger, with optional delay. Support of infinite acquisition, without missing line, for web inspection applications.
Line-Scan Camera Control Line Trigger

Support for quadrature motion encoders, with programmable noise filters, selection of acquisition direction and backward motion compensation. Rate Converter tool for fine control of the pixel aspect ratio: Rate Conversion Ratio in the range 0.001 to 1000 with an accuracy better than 0.1%. Rate Divider tool
Line-Scan Camera Control Line Strobe

Accurate control of the strobe position for strobed light sources.
On-Board Memory

4 GB
