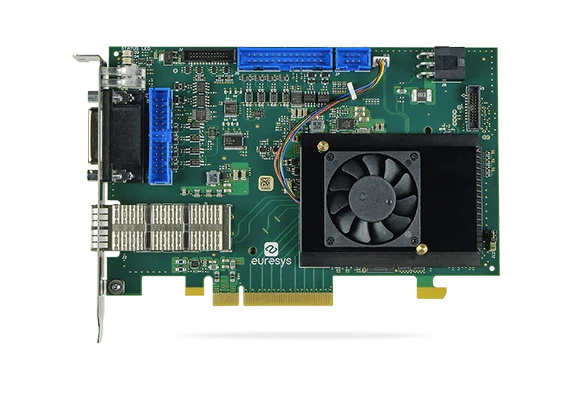

Form Factor
PCI Express card
-
Format
Standard profile, half length, 8-lane PCI Express card
-
Cooling Method
Air cooling, fan-cooled heatsink
-
Mounting
For insertion in a standard height, 8-lane or higher, PCI Express card slot
-
Connectors (Mechanical)
'QSFP+' on bracket: Enhanced Quad Small Form-factor Pluggable port CoaXPress-over-Fiber host interface 'EXTERNAL I/O' on bracket: 26-pin 3-row high-density female sub-D connector I/O lines and power output 'INTERNAL I/O 1' and 'INTERNAL I/O 2' on PCB: 2x 26-pin 2-row 0.1" pitch pin header with shrouding I/O lines and power output 'I/O EXTENSION' on PCB: 26-pin 2-row 0.05" pitch pin header with shrouding I/O extension lines and power output 'AUXILIARY POWER INPUT' on module: 6-pin PEG power socket 12 VDC power input for I/O power 'C2C-LINK' on module: 6-pin 2-row 0.1" header Card to card link
-
Switches
'RECOVERY' on PCB: 3-pin 1-row 0.1" header or 2-way DIP switch Firmware emergency recovery
-
Dimensions
PCB L X H: 167.65 mm x 111.15 mm, 6.6 in x 4.38 in
-
Weight
176 g, 6.21 oz (without transceiver)
-
Standard
PCI Express 3.0
-
Link Width
8 lanes | 1 lane, 2 lanes or 4 lanes with reduced performance
-
Link Speed
8.0 GT/s (PCIe 3.0) | 5.0 GT/s (PCIe 2.0) with reduced performance
-
Maximum Payload Size
512 bytes
-
Peak Delivery Bandwidth
7,800 MB/s
-
Effective (Sustained) Delivery Bandwidth
6,700 MB/s (Host PC motherboard dependent)
-
Power Consumption
Typ. 16.5 W ( 3.0 W @ +3.3V, 12.5 W @ +12V), excluding I/O power output and optical transceiver module
-
Interface Standard(s)
CoaXPress 1.0, 1.1, 1.1.1 and 2.0, CoaXPress-over-Fiber Bridge Protocol 1.0
-
Connectors (Camera/Video Input)
Enhanced Quad Small Form-factor Pluggable (QSFP+) port Compliant with SFF-8436 (4 x10 Gbit/s Pluggable Transceiver) specification Compliant with CoaXPress over Fiber Available power for the module: 3.5 W (SFF-8436 Power Level 4)
-
Number of Cameras
Area-scan cameras: One 1- or 2- or 4-connection camera Line-scan cameras: One 1- or 2- or 4-connection camera
-
Maximum Aggregated Camera Data Transfer Rate
5,000 MB/s
-
Camera Types
Area-scan cameras: Grayscale and color (YCbCr, YUV, RGB and Bayer CFA) Single-tap (1X-1Y) progressive-scan Line-scan cameras and contact imaging sensors: Grayscale and color RGB
-
Camera Pixel Formats Supported
Mono8/10/12/14/16. BayerXX8/XX10/XX12/XX14/XX16. RGB8/RGB10/RGB12/RGB14/RGB16 / RGBA8/10/12/14/16. YCbCr601_422_8/10. YCbCr709_422_8/10. YUV422_8/10. Raw
-
Area-Scan Camera Control Trigger
Precise control of asynchronous reset cameras, with exposure control. Support of camera exposure/readout overlap. Support of external hardware trigger, with optional delay and trigger decimation.
-
Area-Scan Camera Control Strobe
Accurate control of the strobe position for strobed light sources. Support of early and late strobe pulses.
-
Line-Scan Camera Control Scan/Page Trigger
Precise control of start-of-scan and end-of-scan triggers. Support of external hardware trigger, with optional delay. Support of infinite acquisition, without missing line, for web inspection applications.
-
Line-Scan Camera Control Line Trigger
Support for quadrature motion encoders, with programmable noise filters, selection of acquisition direction and backward motion compensation. Rate Converter tool for fine control of the pixel aspect ratio: Rate Conversion Ratio in the range 0.001 to 1000 with an accuracy better than 0.1%. Rate Divider tool
-
Line-Scan Camera Control Line Strobe
Accurate control of the strobe position for strobed light sources.
-
On-Board Memory
4 GB
