Form Factor
PCI Express card
-
Format

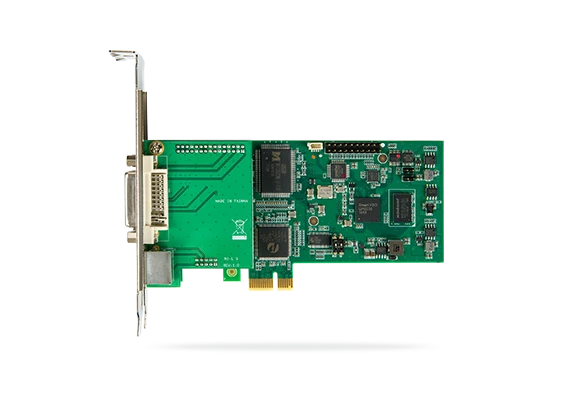

Low profile, half length, 1-lane PCI Express card with optional "Bypass module"on second slot bracket
-
Dimensions
L 135 mm x H 68 mm | L 5.31 in x H 2.68 in
-
Weight
73 g, 2.57 oz, without "Bypass module" | 108 g, 3.81 oz, with "Bypass module"
-
Standard
PCI Express 2.0
-
Link Width
1 lane
-
Link Speed
5.0GT/s (PCIe 2.0)
-
Peak Delivery Bandwidth
512 MB/s
-
Power Consumption
Max. 4.1 W
-
Interface Standard(s)
DVI-D for HD digital video | DVI-A and Y/Pb/Pr for HD analog video | S-Video for SD analog Y/C video | CVBS for SD analog composite video
-
Connectors (Camera/Video Input)
DVI-I INPUT: DVI-I socket(female) connector on the bracket for digital and analog video inputs | YCbCr/AVS INPUTS: mini-DIN female connector on the bracket for one of the following cable: Y/Pb/Pr/L/R component cable; S-video/CVBS/L/R component cable | The Y/Pb/Pr/L/R component cable provides: Y/Pb/Pr: three RCA female connectors for analog HD component video inputs |The S-video/CVBS/L/R component cable provides: S-VIDEO: one 4-pin mini-DIN female connector for analog SD component video inputs; CVBS: one RCA female connector for analog SD composite video input
-
Formats and Standards (HD)
Up to 1080p60 / 1080i60 / 720p60
-
Formats and Standards (SD)
525i60 (NTSC M, NTSC J, PAL M) | 625i50 (PAL B/D/G/H/I, PAL N)
-
Number of Cameras
1
-
Line-Scan Cameras Supported
No
-
Raw Video Format(s)
YUY2, Packed YUV 4:2:2
-
Deliverable Video Resolution (HD)
1080p or 1080i source: 1920 x 1080 down to 640 x 384 | 720p source: 1280 x 720 down to 640 x 384
-
Deliverable Video Resolution (SD)
525i60 source: 720 x 480 | 626i50 source: 720 x 576
-
Loop-Through
All digital and analog, audio and video input signals are replicated on the connectors of the bypass module
-
Connectors (Audio/Video Outputs)
DVI-I OUTPUT: DVI-I socket(female) connector on the bypass module bracket for digital and analog video outputs | YCbCr/AVS OUTPUTS: mini-DIN female connector on the bypass module bracket for one of the following cables: Y/PB/Pr/L/R component cable; S-video/CVBS/L/R component | The Y/PB/Pr/L/R component cable provides: Y/Pb/Pr: 3 RCA female connectors for analog HD component video outputs |The S-video/CVBS/L/R component cable provides: S-VIDEO: 1 4-pin mini-DIN female connector for analog SD component video outputs; CVBS: 1 RCA female connector for analog SD composite video
-
Number of Inputs
1, Stereo
-
Type
L/R Audio: Two line-level analog audio inputs
-
Audio Format
16-bit Linear PCM | 32 kHz, 44.1 kHz or 48 kHz
-
Connectors (Audio Inputs)
YCbCr/AVS INPUTS: mini-DIN female connector on the bracket for one of the following cable: Y/Pb/Pr/L/R component cable; S-video/CVBS/L/R component cable | The Y/Pb/Pr/L/R component cable provides: L/R : one twin RCA female connector for analog audio inputs | The S-video/CVBS/L/R component cable provides: L/R: two RCA female connectors for analog audio inputs
-
Connectors (Audio Outputs)
YCbCr/AVS INPUTS: mini-DIN female connector on the bracket for one of the following cables: Y/PB/Pr/L/R component cable; S-video/CVBS/L/R component cable | The Y/PB/Pr/L/R component cable provides: L/R : 1 twin RCA female connector for analog audio outputs | The S-video/CVBS/L/R component cable provides: L/R: 2 RCA female connectors for analog audio outputs
-
Number of Lines
16 I/O lines (I/O)
-
Connectors (General Purpose)
I/O: 20-pin dual-row 0.1" header on the PCB | WATCHDOG: 4-pin dual-row 0.1" header on the PCB
-
Usage
General purpose IO
-
Electrical Specifications
IO: Quasi-bidirectional I/O lines, individually configurable as input or output
-
Processor
Minimum: Core 2 Duo or better | Recommended: Intel 2nd/ 3rd Generation Core i3/i5/i7
-
System Memory
Minimum: 2GB DDR3 | Recommended: 4GB DDR3 (dual channel) or better
-
Graphic Card
Minimum: Supports DirectX 9 or higher | Recommended: Intel HD2000/2500/3000/4000 or better
-
Host PC Operating System
Microsoft Windows 10, 8.1, 8, 7 for x86 (32-bit) and x86-64 (64-bit) processor architectures
-
APIs
MultiCam 32- and 64-bit binary libraries for ISO-compliant C/C++ compilers | DirectShow filters for Microsoft Visual C++ compilers, for 32- and 64-bit applications | DirectShow .NET C#
-
Operating Ambient Air Temperature
0 to +50 °C / +32 to +122 °F
-
Operating Ambient Air Humidity
10 to 90% RH non-condensing
-
Storage Ambient Air Temperature
-20 to +70 °C / -4 to +158 °F
-
Storage Ambient Air Humidity
10 to 90% RH non-condensing
