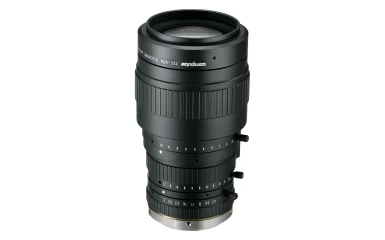

Computar TEC-V7X Lens

Highlights

The Computar TEC-V7X Lens is a macro vision close-up manual zoom lens,  offering a 1.1″ format, 5 megapixels, and C-mount.

Computar TEC-V7X Lens Features

This high-performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range. It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both center and corners. The TEC-V7X’s unique features provide the versatility to meet a wide range of industrial applications. The working distance is adjustable from 182-577mm and an F4.3-32C manual iris allows the precise depth of field and contrast adjustments. This lens is suitable for cameras up to 5 megapixels with 1/1.1” sensors.

Macro Lens Series

The Computar Macro Vision Lens Series has a dedicated design emphasis on the performance of close-up applications required in factory automation and image processing areas. The Computar Macro Vision Lens Series features include,

• Low Distortion
• Assured excellent light intensity even in peripheral areas
• Robust design with built-in locking mechanisms for focus and iris
