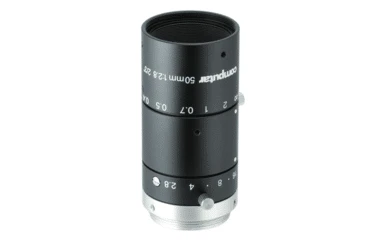

Computar M5028-MPW3 Lens

Highlights

The Computar M5028-MPW3 Lens is a monofocal machine vision lens offering a 2/3″ format, 50mm focal length, and 6 megapixels

Features

• 2/3” Format
• 6 Megapixel
• 50mm Fixed
• F2.8
• Full HD Format
• Fixed Iris
• Compact & Lightweight
• Shorter Working Distance
• Nominal Distortion Design
• Ensures Corner Brightness

Series

The MPW3 Series has a fixed focal length range from 5mm to 75mm and a resolution of 8 megapixels at max. 2.74μm. The C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
