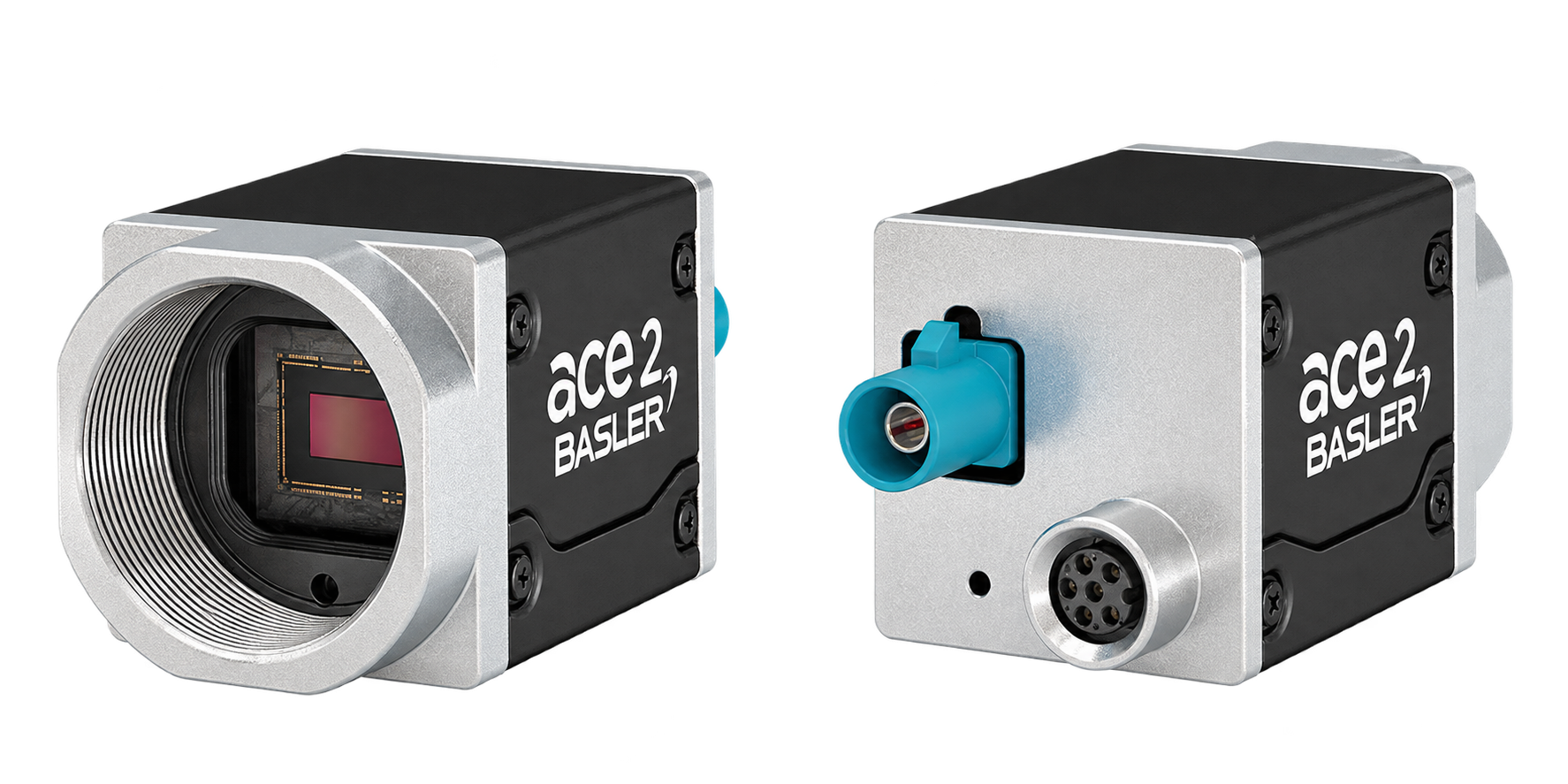

Basler ace 2 R a2A4096-38mgm Camera

Highlights

The Basler ace 2 R a2A4096-38mgm is a compact monochrome GMSL2 area scan camera designed for embedded machine vision applications that require high-resolution imaging, reliable synchronization, and low-latency connectivity. Featuring the Sony IMX545 Pregius S CMOS global shutter sensor, this ace 2 R Basic camera delivers 12.3 MP resolution with a 4096 x 3000 image size and a frame rate of up to 38 fps.

With 2.74 µm pixels, a 1/1.1″ sensor format, and a 6 Gbit/s GMSL2 interface, the a2A4096-38mgm provides high-resolution image acquisition through a robust FAKRA-Z coaxial connection. Its monochrome output, global shutter performance, Power over Coax support, C-mount lens interface, GenICam compatibility, and support for NVIDIA Jetson Orin-based systems make it well suited for robotics, logistics, intelligent transportation systems, industrial inspection, autonomous machines, and embedded machine vision.

Features

• Sony IMX545 CMOS sensor provides high-quality 12.3 MP monochrome imaging for industrial and embedded vision applications.
• 4096 x 3000 resolution supports detailed inspection, detection, measurement, and machine guidance tasks.
• Up to 38 fps provides high-resolution image acquisition for embedded and industrial vision systems.
• Global shutter sensor helps minimize motion distortion when imaging moving objects and synchronized processes.
• GMSL2 interface provides a 6 Gbit/s image data connection for embedded camera systems.
• FAKRA-Z coaxial connector provides a compact and robust connection suitable for GMSL2 integration.
• 2.74 µm x 2.74 µm pixels provide fine spatial sampling for detailed machine vision applications.
• 1/1.1″ sensor format provides a large imaging area for high-resolution machine vision applications.
• 69.9 dB typical dynamic range supports imaging across varying illumination levels.
• Monochrome output supports applications where contrast, sensitivity, and measurement performance are prioritized over color information.
• Power over Coax allows camera power to be supplied through the coaxial connection for simplified cabling.
• Hardware trigger, software trigger, and free-run operation provide flexible synchronization options for embedded vision systems.
• GenICam compatibility and Basler pylon support simplify camera configuration, image acquisition, and system integration.

Applications

• Robotics and autonomous systems
• Logistics automation
• Intelligent transportation systems
• Embedded machine vision
• Automated guided vehicles
• Machine vision alignment and positioning
• Industrial inspection
• High-resolution quality control
• Precision measurement and metrology
• NVIDIA Jetson Orin-based vision systems
