Autovimation Enclosures Protective Laser Enclosure

Highlights

The IP66 laser enclosures are made for typical MV-Laser with 19/20mm diameter. It is available in three length from 120 to 180mm. The special mounting ring holding the laser inside the enclosure and ensures good heat dissipation. It allows flexible positioning and rotation – important for laser line adjustment. An enclosure extension is available for laser that require focusing from the side. The housing either mounts directly to the machine with help of mounting kits or to a dovetail profile using mounting brackets. The latter is often used to build flexible adjustable but rigid laser triangulation set-ups adding a 3D camera within an Orca to the rail. Here laser and camera enclosure can be mounted either vertical at a rotational angle to the profile. Height adapters ensure that the optical axis of both vision components are in the same plane.

Features

  • Robust build: aluminum extrusion profile
  • Small form factor: easy to integrate into existing machines
  • Vibration proof laser mounting inside the laser enclosure with good heat dissipation
  • The laser enclosure extension allows focal adjustment of laser from the side: while it is mounted into the laser-enclosure-profile
  • Compatible to Autovimation’s dovetail profiles: simple set-up of laser-triangulation systems with: Dovetail profiles (triangulation rail): easy positioning of the laser and camera enclosure; Vertical and rotational laser mounts: allow free adjustment but stay in position once the system has been calibrated; 13mm and 29mm distance pieces: ensure the optical axes of camera and laser are in the same plane
  • IP66 – Protection from high pressure water jets (Nema 4)
  • For laser with 19mm or 20mm diameter
  • Enclosure length 120/150/180mm

Material Details

  • Enclosure: anodized aluminum
  • Window: BK7, double-sided broadband anti-reflective coating
  • Window seal: Viton
  • Enclosure seal: EPDM
  • Cable gland seal: TPE

Order Numbers

  • Laser diameter 19mm, enclosure length 120mm = order# 40.010.020
  • Laser diameter 19mm, enclosure length 150mm = order# 40.010.030
  • Laser diameter 19mm, enclosure length 180mm = order# 40.010.040
  • Laser diameter 20mm, enclosure length 120mm = order# 40.010.021
  • Laser diameter 20mm, enclosure length 150mm = order# 40.010.031
  • Laser diameter 20mm, enclosure length 180mm = order# 40.010.041
autoVimation

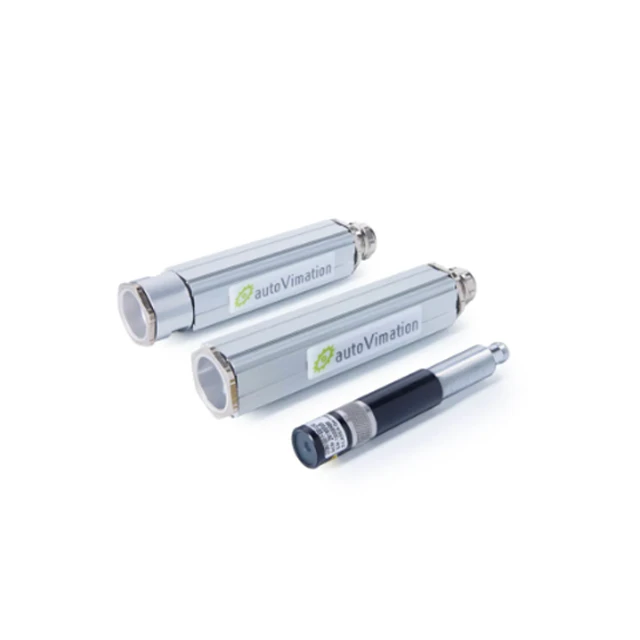

Autovimation Enclosures Protective Laser Enclosure-Photo-1
