Autovimation Enclosures Orca

Highlights

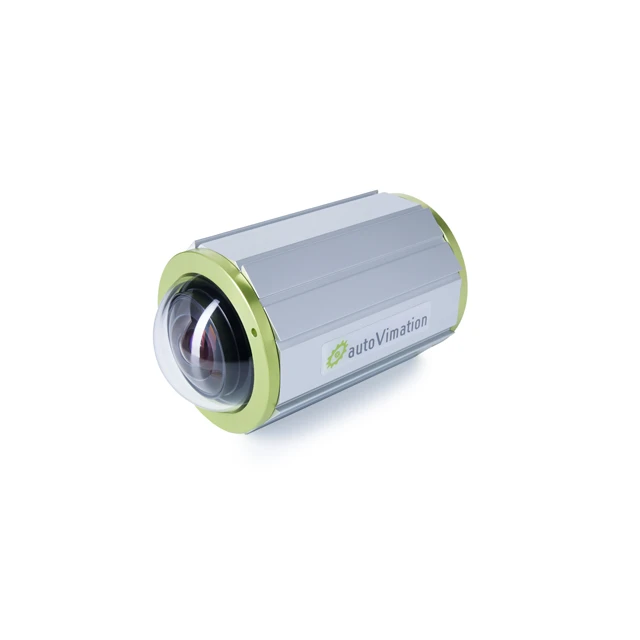

The IP67 Orca enclosure series offers protection for larger cameras of up to 62 x 62mm cross section (for instance Sick Ranger, AVT Prosilica range, Basler Runner, Flir A300 etc.). Smaller cameras also fit into the Orca with special adapter plates, if a large ring light or lens requires more room. It is available in three standard length with different rear walls and front lids. Equipped with the larger 3” window and 65mm aperture diameter it is possible to use wide-angle lenses without obstruction. Even fish-eye lenses with more than 180° viewing angle can be used with the dome lid. The 2” front window allows the use of the wind curtain and is sufficient for compact lenses with standard focal length.

Features

  • Robust build: aluminum extrusion profile
  • Small form factor: easy to integrate into existing machines
  • Flexible camera positioning: angle and position
  • Dovetail profiles enable robust enclosure mounting: on all 4 sides along the entire profile. Mounting brackets resist a displacement force of up to 3000N! Simple adjustment of working distance
  • Compatible with a large range of accessories: various mounting and adjustment brackets, triangulation set-ups, water cooling, controlled heating plate, wind curtain, positioning ring for simple camera replacement and more
  • High chemical resistance by using Viton, EPDM and TPE sealing materials. Contact us with special requirements
  • Special enclosures: for Sick Ranger, Basler Runner/Aviator, Sony FCB block cameras or FLIR A300 thermal imaging cameras
  • Assembly of ring lights with up to 78mm Ø: directly into the 3″ front lid possible
  • Vibration proof camera mounting with good heat dissipation: thanks to the patented Quick-Lock / Heat-Guide mounting system
  • IP66 – Protection from high pressure water jets (Nema 4)
  • IP67 – Protection from occasional submersion (Nema 6) ◦Up to 1h duration ◦Up to 1m water depth
  • For cameras up to 62 x 62mm cross section
  • For connectors up to 26mm Ø
  • Orca S, length: 176, 130 (internal)
  • Orca M, length: 226, 180 (internal)
  • Orca L, length: 296, 250 (internal)
  • Window aperture of 2″ windows: 45mm Ø
  • Window aperture of 3″ windows: 65mm Ø

Material Details

  • Enclosure: anodized aluminum
  • Window: BK7, double-sided broadband anti-reflective coating
  • Window seal: Viton
  • Enclosure seal: EPDM (Viton at request)
  • Cable gland seal: TPE (TPEV at request)
