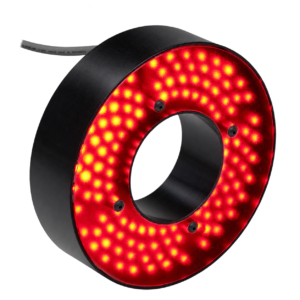

Advanced Illumination RL36120 Large Aimed Bright Field Ring Light
Highlights
Advanced Illumination RL36120 is a large aimed bright field ring light designed for machine vision applications requiring controlled directional illumination over larger inspection areas. Precisely aimed LEDs allow the working distance and illuminated field of view to be specified for the application, while optional diffusion, polarization, RGB illumination, and multiple mounting configurations provide additional integration flexibility.
Features
Precisely Aimed LED Illumination
— Individual LEDs are aimed to produce a defined illumination pattern at the required working distance rather than relying on a conventional fixed ring-light geometry.
— Individual LEDs are aimed to produce a defined illumination pattern at the required working distance rather than relying on a conventional fixed ring-light geometry.
Configurable Working Distance & Field of View
— A range of standoffs and illuminated field sizes can be specified when ordering to match the machine vision application.
— A range of standoffs and illuminated field sizes can be specified when ordering to match the machine vision application.
Large Camera Opening
— The large inner diameter accommodates camera lenses up to approximately 55 mm in diameter.
— The large inner diameter accommodates camera lenses up to approximately 55 mm in diameter.
Visible, UV, IR & RGB Options
— Current configurations include 395, 470, 520, 625, and 880 nm, white, and three-channel RGB illumination.
— Current configurations include 395, 470, 520, 625, and 880 nm, white, and three-channel RGB illumination.
Diffuser & Polarizer Options
— Optional light conditioning can soften illumination or help reduce reflections from glossy and specular surfaces.
— Optional light conditioning can soften illumination or help reduce reflections from glossy and specular surfaces.
Multiple Mounting Options
— Standard and barrel-style mounting configurations are available to support different machine vision system layouts.
— Standard and barrel-style mounting configurations are available to support different machine vision system layouts.
Aimed Bright Field Illumination
Controlled Geometry
Precisely aimed LEDs direct illumination toward a defined inspection area, providing more control over working distance and field coverage than a conventional fixed ring light.
Field of View Selection
XS, S, M, L, XL, and XXL illuminated field options allow the ring light to be configured around the required inspection area.
Large Area Inspection
The RL36120 is the largest of Advanced Illumination’s classic aimed bright field ring lights and is intended for applications requiring broader illuminated fields.
Control & Integration
Control Options
Available configurations include C1, C5, IC, I3, I3S, and direct 24 V operation, subject to configuration restrictions.
Ingress Protection
IP40.
Operating Temperature
0 °C to 60 °C.
Weight
312.1 g (11.01 oz) with the standard mounting configuration.
Standard Cable
2 m cable with a 105 °C-rated PVC jacket, foil shield, and drain.
Lumen Maintenance
L70 = 50,000 hours.

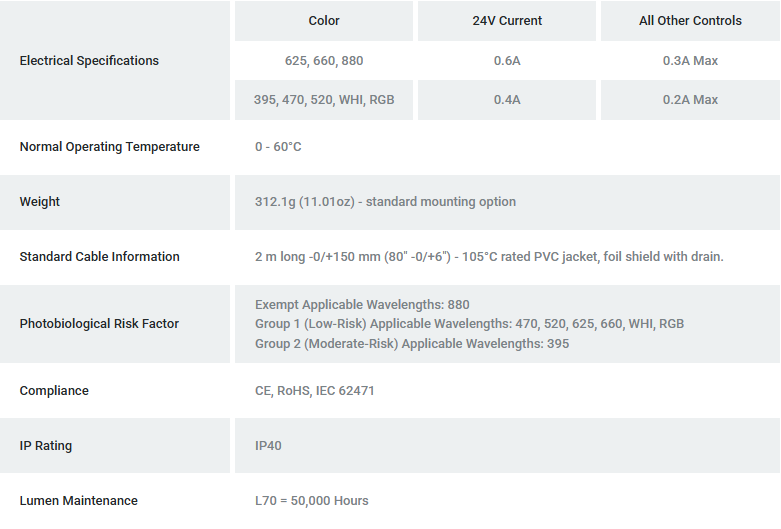

General Specifications
Electrical, thermal, environmental, cable, photobiological, compliance, ingress protection, and lifetime specifications for the Advanced Illumination RL36120 Large Aimed Bright Field Ring Light.
Part Number Key
Use the RL36120 part number key to select mounting configuration, wavelength, standoff, illuminated field of view, connector or control option, light conditioning, and optional alternative connector.
Applications
Large Area Inspection
Bright Field Inspection
PCB Inspection
Electronic Component Inspection
Plastic Container Inspection
Color Inspection
Polarized Surface Inspection
Long Working Distance Inspection
