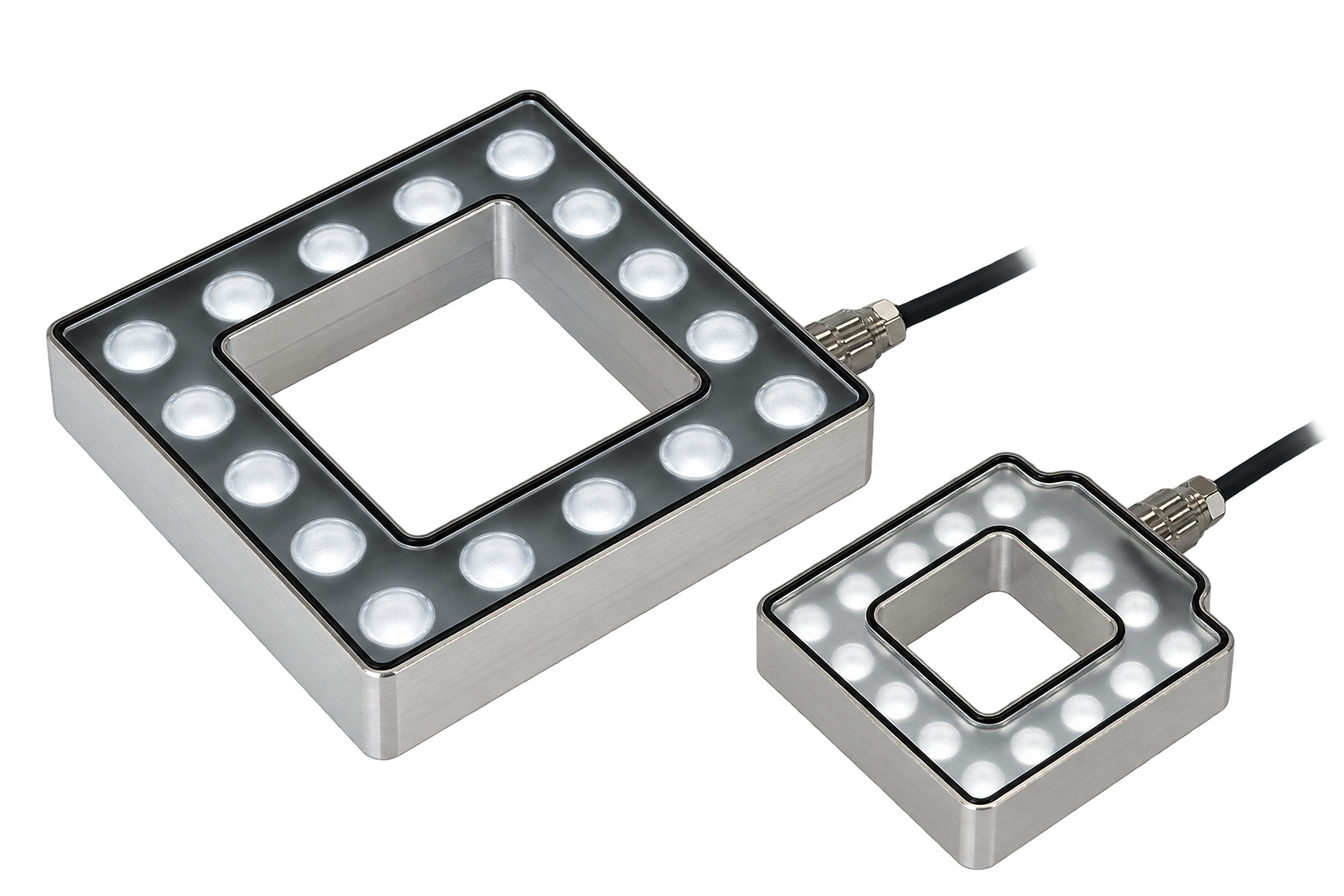

Advanced Illumination RL322 UltraSeal™ Ring Light
Highlights
Advanced Illumination RL322 is an IP69K-certified UltraSeal™ bright field ring light engineered for hygienic machine vision environments requiring frequent high-pressure, high-temperature washdown. Its patented, virtually crevice-free housing eliminates exposed fasteners and is available in anodized aluminum or stainless steel, with 50 mm and 100 mm camera-opening sizes, configurable optics, polarization, and embedded control options.
Features
IP69K Certified
— Third-party certified protection supports high-pressure, high-temperature steam cleaning in demanding hygienic washdown environments.
— Third-party certified protection supports high-pressure, high-temperature steam cleaning in demanding hygienic washdown environments.
Virtually Crevice-Free Housing
— A patented design eliminates exposed fasteners and minimizes areas where food debris, bacteria, and other contaminants can accumulate.
— A patented design eliminates exposed fasteners and minimizes areas where food debris, bacteria, and other contaminants can accumulate.
50 mm & 100 mm Camera Openings
— Two square opening sizes support compact close-range inspection systems as well as larger targets and longer working distances.
— Two square opening sizes support compact close-range inspection systems as well as larger targets and longer working distances.
14 Wavelength Options
— Configurations span UVA, visible, white, and near-infrared illumination from 365 nm through 940 nm.
— Configurations span UVA, visible, white, and near-infrared illumination from 365 nm through 940 nm.
Polarization Available
— Optional polarization helps suppress glare and specular reflections from wet, glossy, plastic, glass, and metal surfaces.
— Optional polarization helps suppress glare and specular reflections from wet, glossy, plastic, glass, and metal surfaces.
Embedded Overdrive Strobe
— ES configurations integrate continuous and overdrive-strobe control directly into the sealed light head, with output up to 5× continuous levels.
— ES configurations integrate continuous and overdrive-strobe control directly into the sealed light head, with output up to 5× continuous levels.
Caustic-Resistant Housing Options
— Select anodized aluminum or 316 stainless steel depending on sanitation chemicals, corrosion exposure, and cleaning requirements.
— Select anodized aluminum or 316 stainless steel depending on sanitation chemicals, corrosion exposure, and cleaning requirements.
Optical Configuration
50 mm Configuration
Available with Narrow 12°, Medium 20°, Wide 32°, or non-lensed optical configurations.
100 mm Configuration
Available with Narrow 14°, Medium 25°, Wide 36°, Extra Wide 55°, or non-lensed optical configurations.
Light Conditioning
Homogenizer, diffuser, and polarizer options allow illumination characteristics to be tailored to the inspection surface and required contrast.
Control & Integration
Embedded Control
EC configurations support continuous and gated-continuous operation, while ES configurations support continuous and overdrive-strobe operation.
Strobe Performance
Compatible inline and embedded strobe configurations support up to 5× continuous output, while C5 configurations with the Pulsar 320E support up to 10×.
Universal Control Options
Available configurations include EC, ES, C1, C5, IC, I3, I3S, and I4 control options.
Mounting
Four M6 threaded mounting holes provide consistent mechanical installation across both RL322 sizes.

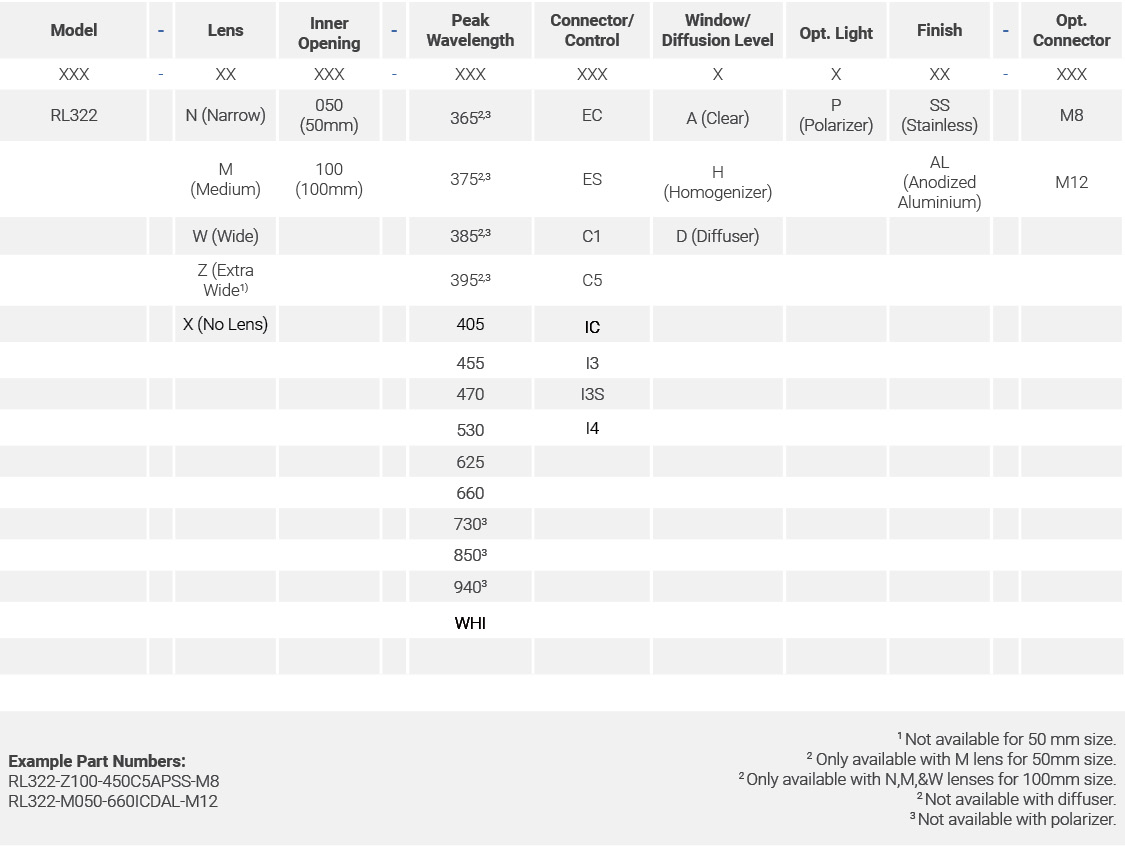

Part Number Key
Use the RL322 part number key to select lens type, camera opening, peak wavelength, connector or control option, window or diffusion level, optional polarization, housing finish, and optional connector.
Applications
Food & Beverage Inspection
Poultry Inspection
Bottle Cap Seal Inspection
Expiration Code OCR / OCV
Produce Sorting
Baked Goods Inspection
Cosmetic Inspection
Washdown Vision Systems
