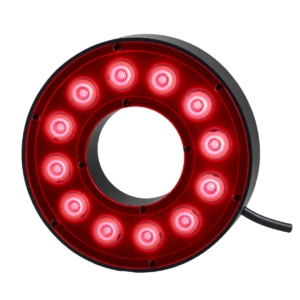

Advanced Illumination RL113 High Intensity Bright Field Ring Light
Highlights
Advanced Illumination RL113 is a high-intensity bright field ring light designed for machine vision inspection at medium to long working distances. With output up to 45.5 klux at 300 mm, configurable narrow, medium, or wide optics, wavelength options from UV through near-infrared, and an IP67-rated industrial enclosure, the RL113 provides concentrated directional illumination for demanding inspection systems.
Features
45.5 klux at 300 mm
— High-output LED illumination makes the RL113 particularly suited to applications requiring greater working distances.
— High-output LED illumination makes the RL113 particularly suited to applications requiring greater working distances.
Long Working Distance Performance
— Focused bright field illumination maintains useful intensity at working distances beyond those typically associated with compact ring lights.
— Focused bright field illumination maintains useful intensity at working distances beyond those typically associated with compact ring lights.
16 Spectral Options
— Configurations span UVA, visible, white, and near-infrared illumination from 365 nm through 940 nm.
— Configurations span UVA, visible, white, and near-infrared illumination from 365 nm through 940 nm.
Three Beam Angles
— Narrow 8°, medium 21°, and wide 29° FWHM options allow the illumination pattern to be matched to working distance and field coverage.
— Narrow 8°, medium 21°, and wide 29° FWHM options allow the illumination pattern to be matched to working distance and field coverage.
IP67 Industrial Construction
— The rugged sealed enclosure supports machine vision installations exposed to dust, moisture, and demanding industrial environments.
— The rugged sealed enclosure supports machine vision installations exposed to dust, moisture, and demanding industrial environments.
Four M4 Mounting Points
— Integrated mounting locations provide secure installation and positioning around the camera optical axis.
— Integrated mounting locations provide secure installation and positioning around the camera optical axis.
Optical Configuration
Narrow
8° FWHM beam for concentrated illumination and longer working-distance applications.
Medium
21° FWHM beam provides a balance between concentrated intensity and field coverage.
Wide
29° FWHM beam provides broader illumination coverage for larger inspection areas.
Control & Integration
Control Options
Available configurations include C1, C5, IC, I3, I3S, and direct 24 V operation.
Operating Temperature
Manufacturer-specified normal operating temperature is 0 °C to 60 °C.
Ingress Protection
IP67.
Weight
725.7 g (25.6 oz).
General Specifications

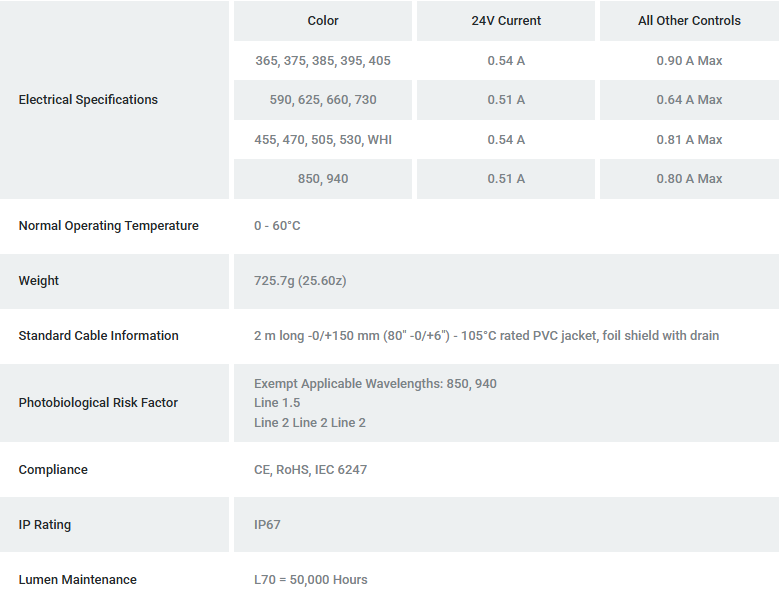

General electrical, thermal, environmental, photobiological, cable, and compliance specifications for the Advanced Illumination RL113 High Intensity Bright Field Ring Light.
Part Number Key
Use the RL113 part number key to select lens type, peak wavelength, connector or control option, and supported alternative connector configuration.
Applications
Matte Surface Inspection
Fast-Moving Object Inspection
PCB Inspection
Electronic Component Inspection
IC Component Inspection
Plastic Container Inspection
Crack & Scratch Inspection
Long Working Distance Inspection
