Advanced Illumination RL-S052120 EuroBrite™ Ring Light
Highlights

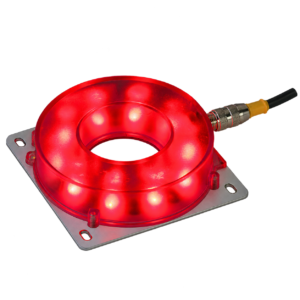

Advanced Illumination RL-S052120 is a high-intensity EuroBrite™ ring light with integrated continuous and strobe control for machine vision inspection. Its sealed IP67 enclosure combines industrial-grade LEDs, Adaptive Power™, Adaptive Overdrive™, analog intensity control, and rugged construction in a compact bright field ring-light platform.
Features
Integrated Continuous & Strobe Control
— The onboard EuroBrite™ driver supports continuous illumination and active-high triggered strobe operation without a separate lighting controller.
— The onboard EuroBrite™ driver supports continuous illumination and active-high triggered strobe operation without a separate lighting controller.
Adaptive Power™
— An onboard thermistor accounts for available heat sinking and operating temperature to maximize continuous light output while protecting the light source.
— An onboard thermistor accounts for available heat sinking and operating temperature to maximize continuous light output while protecting the light source.
Adaptive Overdrive™
— Strobe operation automatically produces a high-output pulse, with overdrive available up to 5× continuous levels for supported pulse durations.
— Strobe operation automatically produces a high-output pulse, with overdrive available up to 5× continuous levels for supported pulse durations.
IP67 Sealed Enclosure
— The sealed housing protects the ring light against dust and water ingress for demanding industrial and washdown environments.
— The sealed housing protects the ring light against dust and water ingress for demanding industrial and washdown environments.
Rugged Industrial Construction
— Advanced Illumination reports the EuroBrite™ housing has been tested to withstand more than 1000 lb of applied force.
— Advanced Illumination reports the EuroBrite™ housing has been tested to withstand more than 1000 lb of applied force.
11 Wavelength Options
— Available configurations span visible, white, and near-infrared illumination from 455 nm through 940 nm.
— Available configurations span visible, white, and near-infrared illumination from 455 nm through 940 nm.
Optical Configuration
Medium Spread
Standard medium-spread configuration provides a 21° FWHM beam angle.
Wide Spread
Wide-spread configuration provides a 32° FWHM beam angle for broader field coverage.
Visible to NIR
Available in white plus 455, 470, 505, 530, 590, 625, 660, 730, 850, and 940 nm.
Control & Integration
Input Voltage
24 V DC nominal, with a manufacturer-specified operating range of 22–28 V DC.
Analog Intensity Control
0.7–10 V analog input provides approximately 10–100% intensity adjustment.
Triggering
Active-high strobe input with a manufacturer-specified trigger-to-pulse latency of 10 µs.
M12 Connection
Uses a 5-pin male M12 connector. Cable is not included; Advanced Illumination specifies LC2-M12-5-FX or a standard coded 5-pin M12 cable.
General Specifications

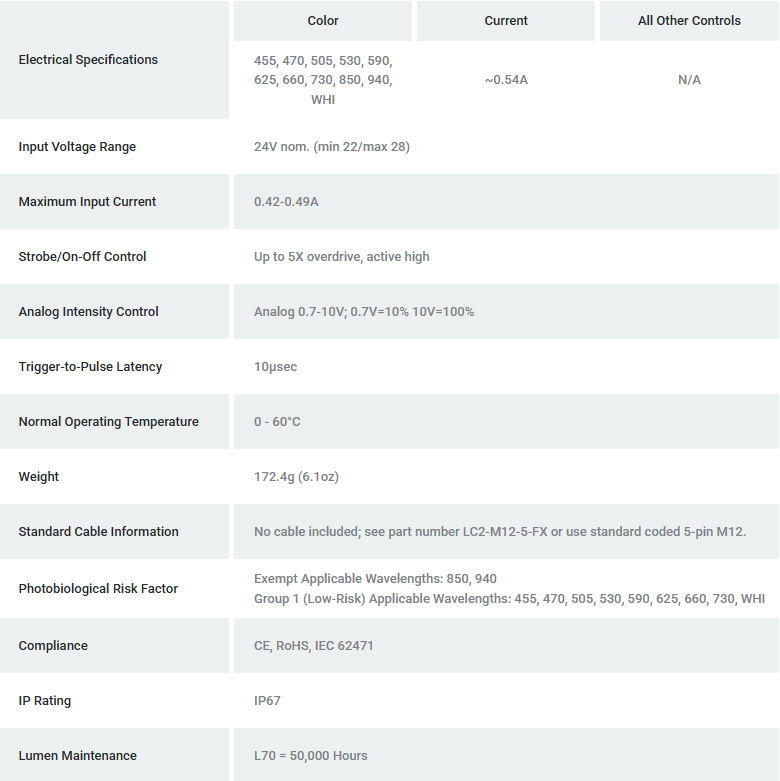

General electrical, control, thermal, environmental, photobiological, and compliance specifications for the Advanced Illumination RL-S052120 EuroBrite™ Ring Light.
Part Number Key
Use the RL-S052120 part number key to select medium or wide beam spread, peak wavelength, and the supported continuous/strobe configuration.
Applications
General Bright Field Inspection
Matte Surface Inspection
PCB Inspection
Electronic Component Inspection
IC Component Inspection
Plastic Container Inspection
Fast-Moving Object Inspection
