Advanced Illumination High Intensity Edge-lit Backlights BX2-XXXYYY

Highlights

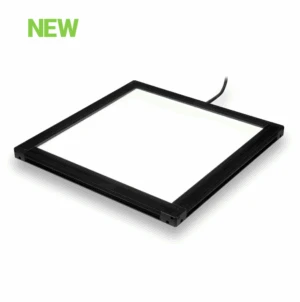

The BX2 Series of edge-lit backlights offers a highly diffuse source of illumination, housed within a thin and thermally efficient enclosure.

Features

The BX2 allows for configuration with polarization or collimation. A backlight configured with collimation is best suited for applications requiring a higher degree of edge clarity when imaging object silhouettes.

This second edition of our edge-lit backlight series is more than twice as bright as previous BX and CX models.

As with most planar backlight designs, this product is helpful for edge detection, part location & orientation identification, presence & absence, hole detection, and object gauging.

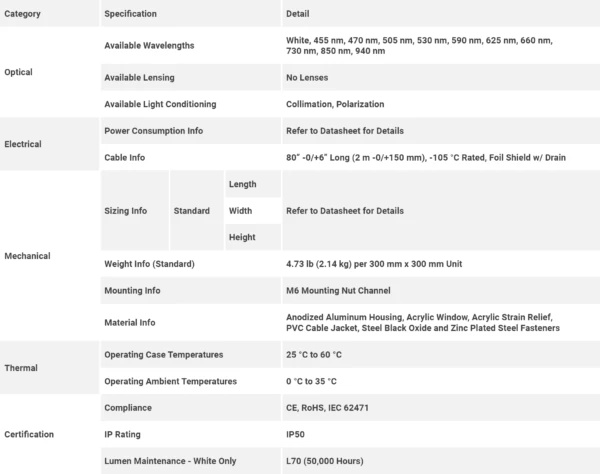

General Specifications

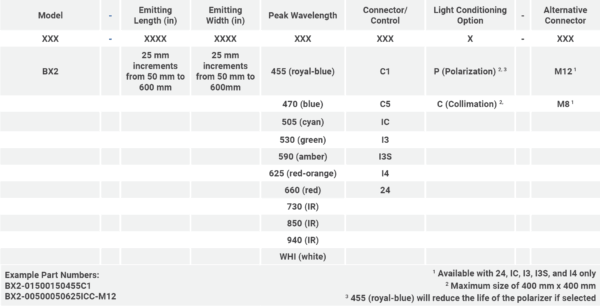

Part Number Key
