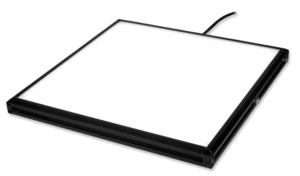

Advanced Illumination High Intensity Back-lit Backlights BL2-XXYY

Highlights

The popular BL2 Series offers a high-intensity, diffuse backlit backlight source, primarily used for creating high-contrast object silhouettes or imaging through semi-translucent materials.

Features

The BL2 is highly scalable with consistent uniformity across its active area, regardless of size.

This differs from our BX/CX Series, which loses uniformity when configuring units larger than 16 inches in width, but provides minimal edge effect and a thinner package.

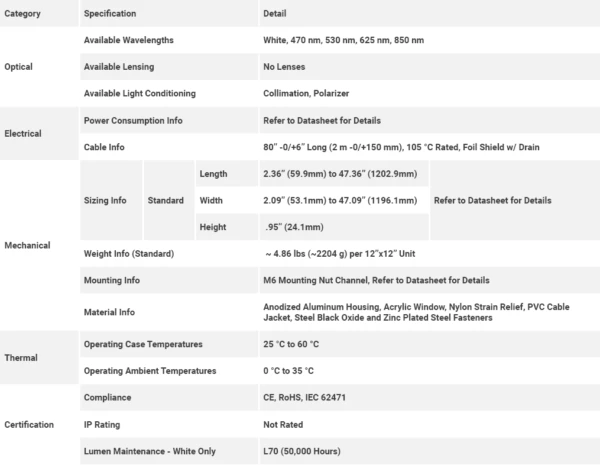

General Specifications

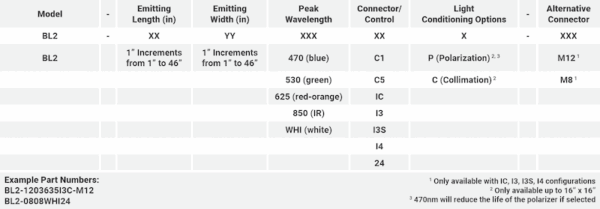

Part Number Key
